High Speed Uncoiling-Slitting-Recoiling Line
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

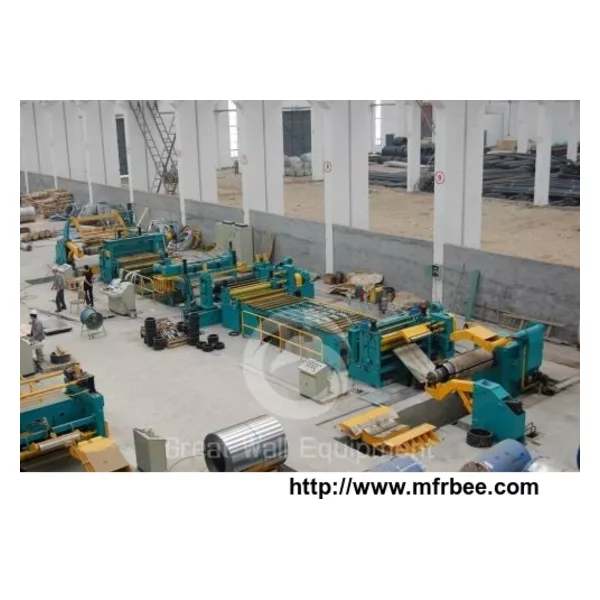

High Speed Uncoiling-Slitting-Recoiling Line
This line is used for coil with different specifications, through uncoiling-slitting-recoiling to needed width coil for the application of all kinds of stamping line.
This line is reasonable in layout, easy operation, high level of automation, high productivity which could processing all kinds of CR and HR coil, silicon coil, stainless coil, colored coil, aluminum coil, galvanize coil or painted coil. This line is broadly applying in metal plate processing industry, like car, container, household appliance, packing, construction material, etc. This line is composed of coil car, uncoiler, slitter, scrap winder, shearer cutting coil head or tail, tension pad and recoiler, etc. as well as pendulum middle bridge, pinch device, steering device. This line is an auto coil processing equipment which integrate mechanical, electrical, hydraulic, pneumatic all together.
Main Technical Parameter
| NameModel | 2×1300 | 2×1600 | 3×1300 | 3×1600 |
| Coil Thickness(mm) | 0.3-2 | 0.3-2 | 0.5-3 | 0.5-3 |
| Coil Width(mm) | 600-1300 | 600-1600 | 600-1300 | 600-1600 |
| Slitting Strips | 2-20 | 2-20 | 2-15 | 2-15 |
| Strip Width Precision(mm) | ±0.1 | ±0.1 | ±0.15 | ±0.15 |
| Line Speed(mm) | 10-120 | 10-120 | 10-120 | 10-120 |
| Coil Weight(T) | 10 | 15 | 20 | 30 |
| Coil I.D.(mm) | Ф508 | Ф508 | Ф508，Ф610 | Ф508，Ф610 |
| Recoiling I.D.(mm) | Ф508 | Ф508 | Ф508 | Ф610 |
| Main Shaft Dia.(mm) | Ф220 | Ф240 | Ф240 | Ф240 |
