Middle Thick Sheet Slitting Line

Product Details:

Payment & Shipping Terms:

Product Description

Introduction:

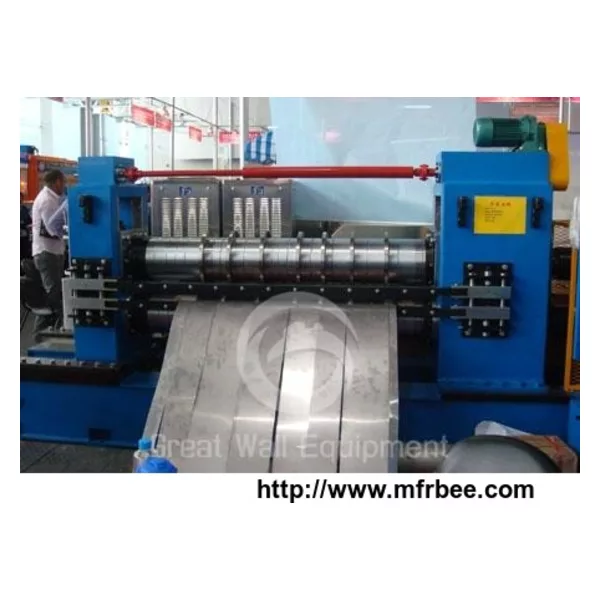

This middle thick sheet slitting line, also called metal coil slitter, is a kind of production line to break down master coils into smaller coils of a particular width. The thin coil slitting line is made up of coil-loading car, single mandrel uncoiling, coil-end-feeding and shoveling, double roller pinching feeding, three-roller-leveling, end-cutting, strip-aligning, disk shearing, scrap reeling, hole accumulator, pre-separator, tensioning, recoiling ,coil down car, hydraulic control, and electric control.

Because of the thickness of slitting sheet, the coil slitting line can be divided into thin coil slitting line, middle thick sheet slitting line and thick coil slitting line. Among them, the middle thick sheet slitting line: strip thickness: (2-8) mm, (3-6) mm or (3-10) mm; strip width: 600-1600 mm, 600-1800mm or 600-2000mm.

Advantages:

1. The middle thick sheet slitting line is controlled by electrical controls system, a key to increasing yield; while the traditional one is adjusted by operators.

2. Offline setup, push-button slitter tooling lock-up, powered inde-ing tension rolls, quick-change tooling bars and automatic transmissions are on all DC motors.

3. Some design elements on this coil slitting line improve the high yield output, including slit edge quality, straight-wall slit coils as well as the ability to hold tight slit strip tolerances.

Detailed specifications:

1. 2-8×1600mm slitting line

Material of coils: carbon steel, color steel, galvanized steel and etc

Strip thickness: 2-8 mm

Strip width: 600-1600 mm

Inner diameter of coils: φ508mm, φ610mm, φ760mm

Ma-.outer diameter of coils: φ1800mm

Ma-.coil weight: 30000kg

Uncoiling mandrel: φ508, φ610,φ760

Leveling roller: φ160

Material of leveling roller: 40Cr

Material of disc cutter: 6CrW2Si, HRC56°-58°

Recoiling spindle: φ508×1700mm

Slitting speed: 0-100 m/min, adjustable

2. 3-6×1800mm slitting line

Material of coils: carbon steel, color steel, galvanized steel and etc

Strip thickness: 3-6mm

Strip width: 600-1800mm

Inner diameter of coils: φ508mm, φ610mm, φ760mm

Ma-.outer diameter of coils: φ2000mm

Ma-.coil weight: 30000kg

Uncoiling mandrel: φ508, φ610, φ760

Leveling roller: φ160

Material of leveling roller: 40Cr

Material of disc cutter: 6CrW2Si

Recoiling spindle: φ508×1850mm

Slitting speed: 0-70 m/min, adjustable

3. 3-10×2000mm slitting line

Material of coils: stainless steel

Strip thickness: 3-10mm

Strip width: 600-2000mm

Inner diameter of coils: φ508mm, φ610mm, φ760mm

Ma-.outer diameter of coils: φ2000mm

Ma-.coil weight: 30000kg

Uncoiling mandrel: φ508, φ610, φ760

Leveling roller: φ160

Material of leveling roller: 40Cr

Material of disc cutter: SKD-II

Recoiling spindle: φ508×1850mm

Slitting speed: 0-80 m/min, adjustable

Technical parameters of middle thick sheet slitter:
