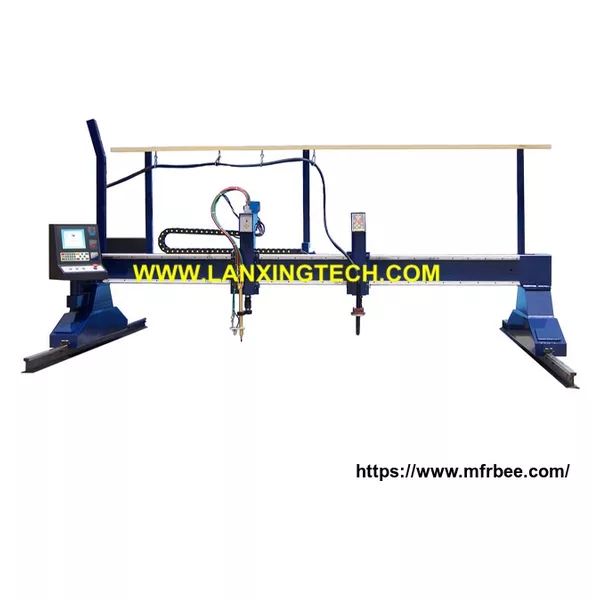

Heavy Duty Gantry CNC cutting machine

Can be applied in cutting carbon steel,Mn-steel,stainless steel and so on.

It can add additional cutting torches,or configurate both abnormality cutting &Strip cutting according to User Requirement.

Auto Capacitive height control for flame cutting or Arc voltage height control for plasma cutting can also be configurated.

Main Features:
1. Beam:square tube butt welding struture,excellent rigidity,high presision,lingth weight,small inertia.Prevent deformations effectively.
2. Transversal& lognitudinal drive: precision gear rack（7 grade precision）transmission. Transversal rail : linear guide imported from Taiwan, lognitudinal rail: precision machined special rail & Planet reducer to assure stable running,high presision,durable in use, clean and beautiful.
3. Lognitudinal drive rack(endframe): horizontal orientated wheel at both ends,which can adjust the puddlability between eccentric wheel and rail, to assure the stablility.With dust catcher,can clean dust on rail.
4. Drive syetem:Chinese step driver,can also configurate Japan Panasonic AC servo motor/ ChineseC servo motor.
5. THC using aluminium alloy structure,linear guide track-oriented,ball screw lift.
6. Easy automatic programming syetem.
7. Self-developed CNC system with top stability and antijamming capability.

Powerful CNC cutting machine Controller

1.Graphic display function

2.Break-point & power-cut restoration

3.Returning to reference point
4.Kerf compensation

5.Revolving
6.Mirror image

Cross Beam Length(X axis)	4m-10m
Longitudinal Rail Length(Y axis)	6m (Can be lengthened)
Effective Cutting Width (X axis)	3m-9m
Effective Cutting Length (Y axis)	4.8m(Can be lengthened)
Cutting Mode	Flame/Plasma/Both Flame&Plasma
Drive Mode	Bilateral-side
Drive Method	Rack and pinion drive for X and Y axes
Flame Cutting Thickness	5-200mm
Plasma Cutting Thickness	1-60mm (according to the specification of plasma power source)
Cutting Speed	0-3500mm per minute
Moving Precision	0.01mm per step
Power Source	220V 50Hz 500-1000W
Nesting Software (option)	INTERGNPS, FASTCAM
Cutting Gas	Acetylene, Propane&Oxygen
Plasma Gas	Pressed air, Oxygen, N2
Marking Tool
Torch Height Control System	CHC	Auto Capacitive height control for flame cutting
AVHC	Auto Arc voltage height control for plasma cutting
