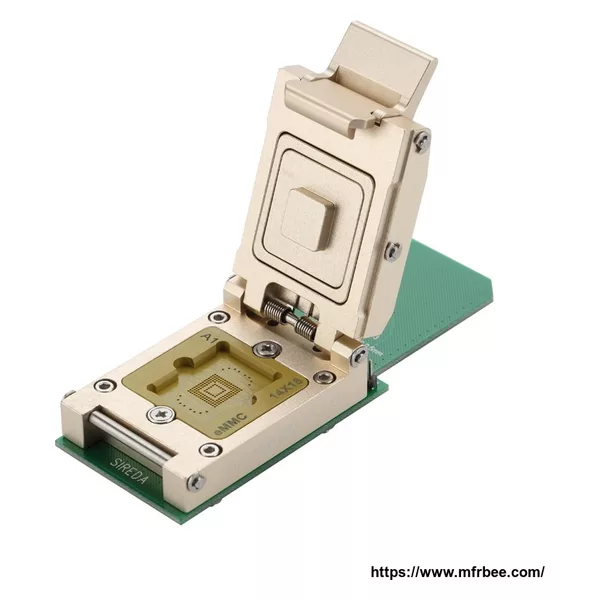

BGA169 Socket SD Solution_14X18mm_Premium, eMMC Test Socket

Place Of Origin
China
FOB Price
USD $495.00 / Piece
Minimum Order
1
Packaging
1set
Delivery
5 Days

The SD solution is designed for test, debug, validation, and programming of eMMC, eMCP devices

The SD solution provides a compact test solution for eMMC, eMCP devices used in applications such as handheld, mobile, and TV product development.

  • Test, debug, validation, and programming of eMMC, eMCP devices
  • Failure analysis / System and wafer test
  • Package and Chip qualification
  • Production prototype / Data recover

Feature:

  • Suitable for devices of Samsung, Hynix, Sandisk, Toshiba, Intel, Kingston etc eMMC and eMCP.
  • Support eMMC version: ≤eMMC5.0.
  • Support hot plug, eMMC can be directly connected to PC with SD card reader.
  • Realize reading, accessing and writting data for eMMC and eMCP devices
Specification:
Mechanical
Socket Body: Torlon
Socket Lid: Aluminum Alloy
Contact: Spring Probe
Operation Temperature: -40ºC to 120ºC
Life Span at Operating Travel:100K Cycles min.
Cycles Spring Force:27gf per Pin
Electrical
Current Rating (Continuous) : 2.59A
Self Inductance:1.57nH
Bandwidth -1dB:10GHz
DC Resistance: 42mohm
