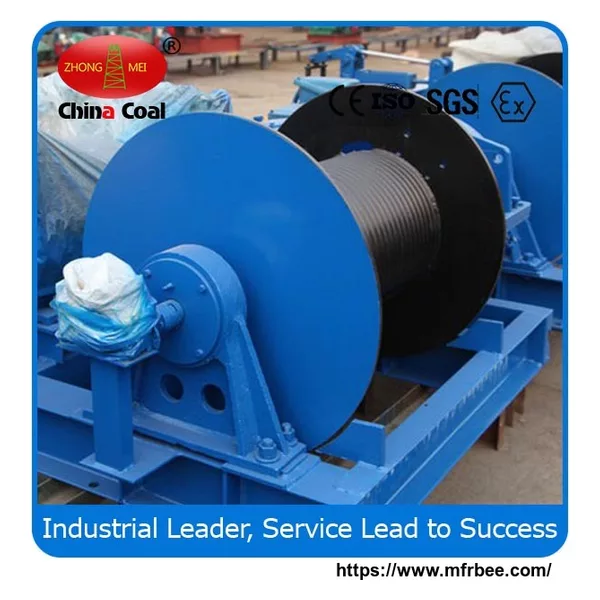

JK Capstan Winch with Remote Control
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 5-10 days after your payment
Specifications
JK Electric Winch with Remote Control
This series of hoist is mainly used in the large and middle sized concrete, steel structure and mechanical equipment installation and dismantling. The structural characteristics of steel wire rope is an orderly, lifting safe and reliable. Suitable for all kinds of bridge, port, wharf and road and bridge engineering and large factories and mines engineering equipment installation.
jk electric winch high speed use for crane and installation industry feature
1.Final Drives gears are made with heat-treated carbon steel offering greater strength.
2.Precision needle bearing used in high-load areas offering lower friction level and longer life.
3.High impact case providing weather resistance and protection for internal components.
4.Durable hook safety snap keeping the loads attached.
Main Parameter
| Model | JK1 | JK3 | JK5 | JK8 | JK10 | |
| Line pull capacity (kg) | 1000 | 3000 | 5000 | 8000 | 10000 | |
| Wire rope average speed (m/min) | 30 | 30 | 28 | 20 | 19 | |
| Wire rope Dia.( mm): | 9.3 | 15.5 | 21.5 | 26 | 30 | |
| Reduction box | Type | JZQ350 | JZQ500 | JZQ650 | JZQ650 | JZQ750 |
| Transmission ratio | 31.5 | 23.34 | 40.17 | 23.34 | 23.34 | |
| Drum (mm) | Diameter() | 190 | 325 | 406 | 500 | 550 |
| Length | 360 | 520 | 840 | 900 | 1000 | |
| Capacity(m) | 110 | 200 | 300 | 300 | 450 |
