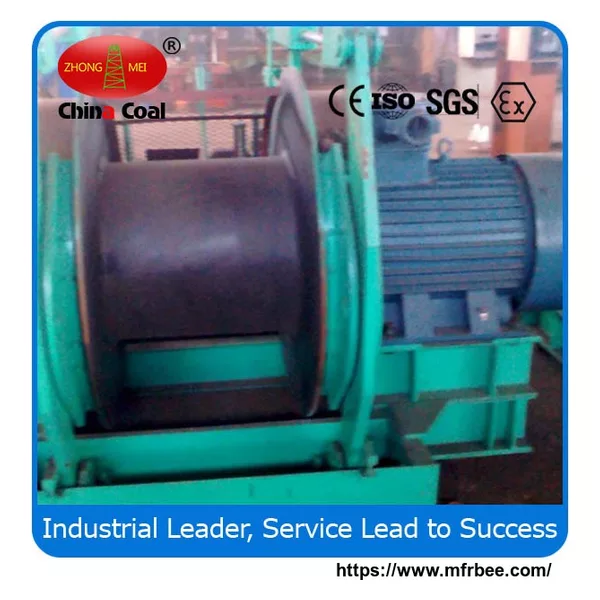

Mining Lifting Equipment JD-1.6 Mining Dispatching Winch
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 5-10 days after your payment
Specifications
JD series of scheduling winch for flameproof for mine underground or ground load scheduling marshalling harvesters and roadway checked harvesters and other auxiliary handling in the middle. Winch using planetary gear transmission, winch has a compact structure, good rigidity, high efficiency, easy installation and moving, smooth starting, flexible operation, reliable braking, low noise characteristics.
JD series of scheduling winch is composed of motor, drum devices, brakes or hydraulic push rod, the base and cover parts.
JD series of scheduling winch by operating brake and working brake winch drum forward and stops, so as to realize the weight of the traction and stop the two kinds of working condition. In each winch in the design of the internal parts adopt rolling bearing, flexible operation.
Technology Parameters
| Model | JD-0.5 | JD-0.75 | JD-1 | JD-1.6 | JD-4 |
| Traction Force KN | 7.5 | 7.5 | 10 | 17.6 | 30 |
| Average Speed m/s | 0.71 | 0.71 | 0.78 | 1.4 | 1.44 |
| Dia of Wire Rope mm | 9.3 | 9.3 | 12.5 | 15 | 20 |
| Drum Size mm | 200×300 | 200×300 | 224×304 | 310×400 | 620×580 |
| Rope Capacity m | 250 | 250 | 400 | 440 | 480 |
| Total Reduction Ratio | 34.81 | 34.81 | 41 | 32.5 | 31.8 |
| Motor Type | YB132S-4-B5 | YBJ-11.4 | YBJ45-4 | YBJ40-4 | YB2-132S-4 |
| Motor Power KW | 5.5 | 11.4 | 25 | 40 | 5.5 |
| Motor Rev Rev/min | 1440 | 1460 | 1470 | 1470 | 1440 |
