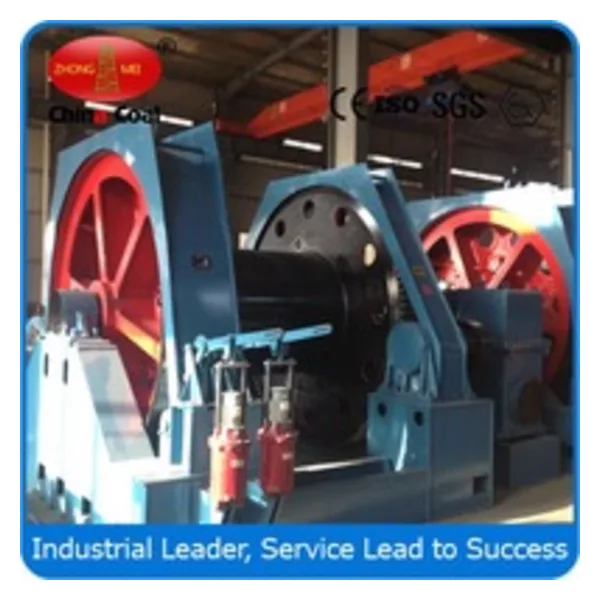

5Ton to 40Ton capacity Mine Shaft Sinking Winch
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 5-10 days after your payment
Specifications
Product Introduction
JZ series sinking winches are used in coal mine, metal mine, non-metallic mine for hanging the swaying tray, water pump, air compressor, grouting tube, wind-cone and other excavation facilities, also can use for hanging heavy loads on surface and underground.
mine winch with hydraulic thrust Failsafe brake for mine shaft lifting and pulling.
variable speed , local contril and radio remote control..
The features:
1.set one/two hydraulic thrust Failsafe brake and one hydraulic disk drum brake,
2.compact in structure, easy to operation, safe and reliable. frequency conversion and joystick controller for speed control.
3. emergency stop, power failure safety brake, over winding protection
| Model | Steel wire most greatly static tensity KN | Drum capacity m | Steel wire fast speed m/min | Steel wire slow speed m/min | Steel wire diameter mm | Motor power KW | Motor voltage V | Machine dimension mm | Total weight KG |
| JZ-5/400 | 50 | 400 | 6 | 3 | 23 | 11 | 380 | 2375*1970*1340 | 3140 |
| JZ-10/600 | 100 | 600 | 6 | 3 | 31 | 22 | 380 | 3037*2570*1770 | 6250 |
| JZ-10/800 | 100 | 800 | 6 | 3 | 31 | 22 | 380 | 3342*2906*1825 | 6500 |
| JZ-16/800 | 160 | 800 | 6 | 3 | 40 | 37 | 380 | 3358*3200*2240 | 11480 |
| JZ-16/1000 | 160 | 1000 | 6 | 3 | 40 | 37 | 380 | 3508*3200*2240 | 11700 |
