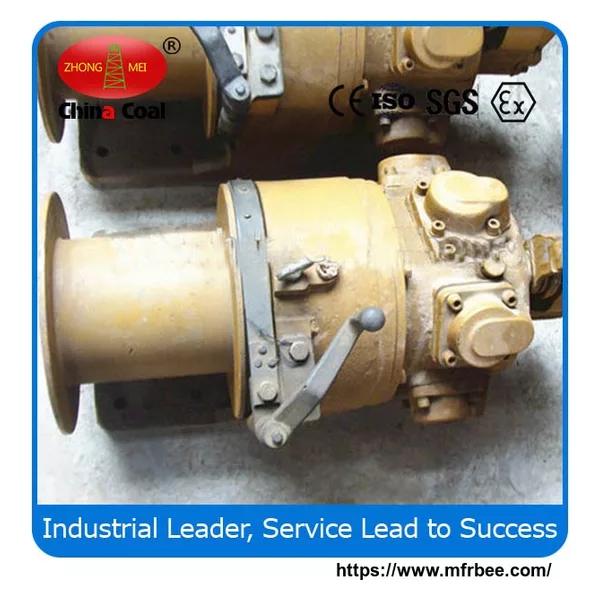

Anti-explosion Air Pneumatic Brake Windlass Winch
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 5-10 days after your payment
Specifications
1. This is multi-purpose air winch is powered by piston air motor and hand operated. It’s mainly used for pulling or lifting heavy things in metal mine, coal mine, civil and building construction project, oil field, etc.
2. Whether it’s on the surface or below ground, mining is a big industry. The winches are built tough to withstand the dust, dirt, grit, grime and moisture etc.
3. It has reasonable design, compact structure, and it’s also easy to transport and install.
4. It has a compact, easy to operate,safe, reliable, easy maintenance, stable operation, stepless speed advantages. As proof traction, transport or shipping device, particularly for oil field, geological drilling, mining and explosive, flammable gas field.
Technical Data
| 1 | Air pressure(Mpa) | 0.6-0.8 | |
| 2 | Rated Tension(KN) | 20 | |
| 3 | Rated Speed(m/min) | 24 | |
| 4 | Air motor | Rated power(KW) | 8 |
| Cylinder Qty.(pcs) | 5 | ||
| 5 |
Drum |
quantity | 1 |
| diameter(mm) | 222 | ||
| width(mm) | 335 | ||
| Rope capacity(m) | 150 | ||
| 6 | Rope diameter(mm) | 16 | |
| 7 | Air hose diameter(inch) | 1.25 |
