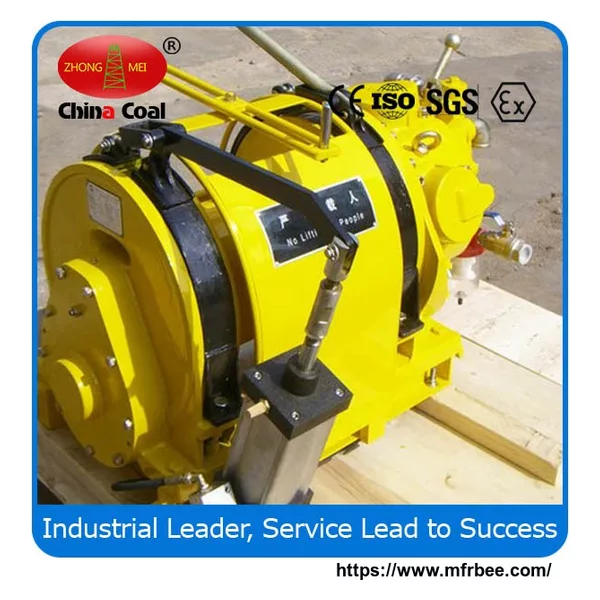

CHINACOAL mining pneumatic air winch 5 ton :
To ensure the pneumatic winch works normally, make best use of it and prolong its
working life, it is very important for users to install, operate and maintain it correctly
and carefully. It is advisable that the consumers should read the manual book carefully
before using it .
Main Parameter
Model | JQHS-30 | JQHS-50 |
Max lifting force | 30KN | 50KN |
Max lifting speed | 5m/min | 12m/min |
Rated power | 15kw | 16kw |
Air intake pressure | 0.8Mpa | 0.8Mpa |
Rated air consumption | 12.7m3/min | 12.7m3/min |
Wire capacity | 200m single brake | 150m single brake |
Diameter of wire | 16mm | 20mm |
Base connecting size | 912x500mm | 912x500mm |
Net weight | 550kg | 550kg |
