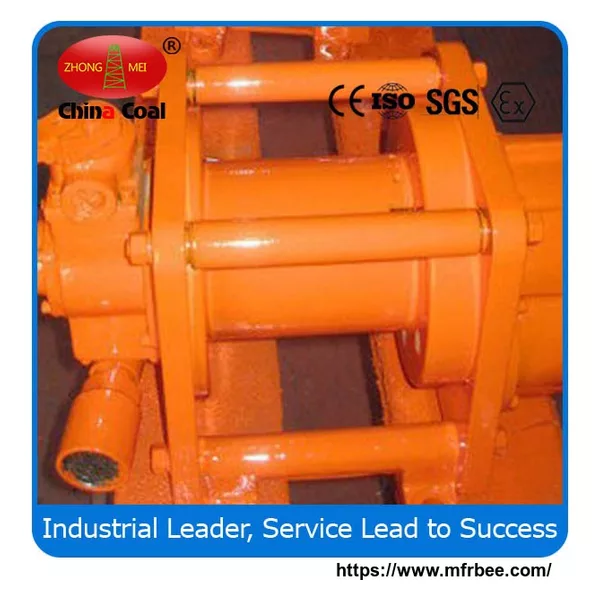

Air Motor Powered Blade Air Winch with CE
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 5-10 days after your payment
Specifications
Air Motor Powered Blade Air Winch with CE
Blade air winch with aluminum alloy material for shell,is powered by compressed air,Manual control and driven by blade air motor,gear down and drive drum to rotate.Main features:Small size.light weight,high efficiency,easy to operate,security and reliable,and can realize stepless speed in a certain range.It can lift and pull heavy objects in oil ships and work places with flammable gas.
Specifications
1. This winch is powered by compressed air and can be manually controlled. Driven by the blade air motor and slowed down by gears,it can rotate the drum to meet the working requirement by usage of braking the annular gear.
2. This winch is equipped with one foot valve.
When on operation, step the foot valve first, the winch start working, then control the operation by handles.
When off operation, release the foot valve, the winch stop working automatically, it can achieve a longer life for the winch and air motor.
Main Parameter
| Model |
Rated
Pull |
Rope
speed |
Rope
diameter |
Rope
capacity |
Air
pressure |
Outline
dimension |
Weight (kg) |
| JX75K-6-50 | 0.75 | 45 | 6 | 50 | 0.6 | 497*292*293 | 27 |
| JX75K-6-60 | 0.75 | 45 | 6 | 60 | 0.6 | 522*292*293 | 29 |
| JX75K-6-80 | 0.75 | 45 | 6 | 80 | 0.6 | 582*292*293 | 32 |
| JX100K-6-50 | 1 | 25 | 6(8) | 50(40) | 0.6 | 514*295*293 | 34 |
| JX100K-6-80 | 1 | 25 | 6(8) | 80(70) | 0.6 | 599*295*293 | 36 |
