Rake Mine Winch Scraper Winch

Rake mine winch is mainly used for metal mines and other mines or open pit ore handling and filling work. Mainly used for horizontal rake movement, can also be used rake angle of slope is not big, not as lifting equipment. Drivers can operated by hand beside the winch can also be a few meters or even tens of meters away from the winch with the button distance operation.

Rake mine winch by the winding wire rope on the drum for reciprocating harrow to rake transport materials.

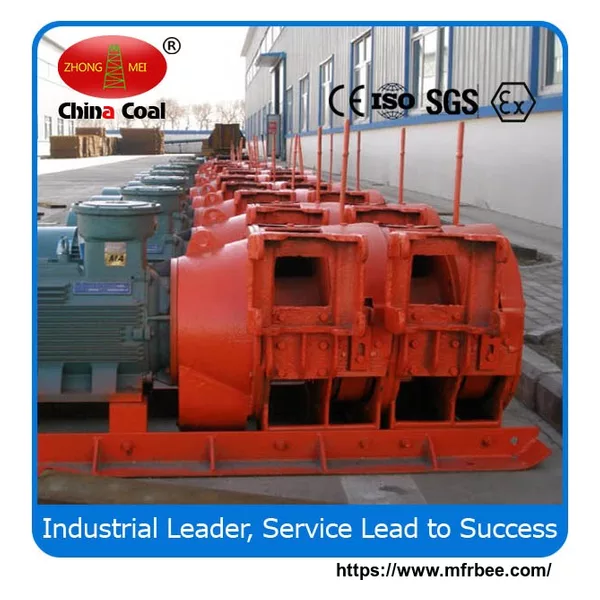

Rake mine winch made up by winch, rake bucket, pulley three main parts.

Rake mine winch is mainly used for metal mines and other mines pit and open spaces, in the horizontal and inclined slightly to the work surface for mineral rake transportation and filling work.

Main structure

Rake mine winch with deceleration devices, the main roller, vice roller, control devices, rope guides and motors. These components are mounted outside the housing, the housing is a steel with better parts, both to protect the supporting role, but also bear the full load. It is bolted to the foundation connected with two skids. Binoculars winch has a main roller (mounted on the right,closer to the motor side), a secondary roller (mounted on the left). Three roller winch with a main spool (mounted in the middle), the two sub-roller (mounted on the left and right). Three roller winch can also be installed two main rollers(mounted on the right and the center), a secondary roller (mounted on the left), each roller corresponding to one control device and one rope guiding device.

CATEGORY

Type:2JPB-7.5,2JPB-15,2JPB-22,2JPB-30

Introduction(such as 2JPB-7.5 ):

2:Rope roller QTY; J:winch; P:Rake mine winch; B:Explosion-proof ; 7.5:Power

Technical Parameter

Model 2JPB-7.5 2JPB-15

Primary rope average tension:kn 8 15

Primary rope average speed:m/s 1.1 1.1

Secondary rope average speed :m/s 1.5 1.5

Primary rope dia:mm 9.3 12.5

Secondary rope dia:mm 9.3 11

Roller dia :mm 205 250

Roller rim dia:mm 350 435

Roller :mm 80 125

Target bucket capacity:m3 0.25 0.25

Outer size:mm 1210*565*490 1525*660*620

Weight:kg 90 672
