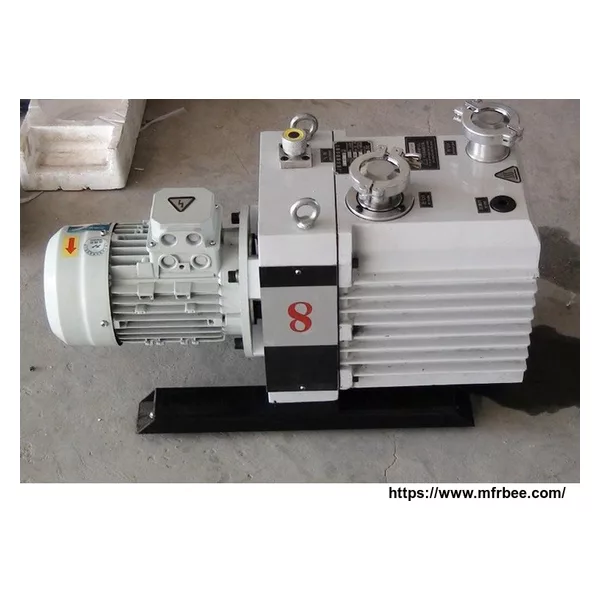

2X Rotary Vane Vacuum Pump
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 5-10 days after your payment
Specifications
| Brand | Yimei | Model | 2X |
| Material | Stainless steel | Drive mode | electric |
| Application | Booster pump | theory | Vacuum pump |
| Impeller inhaled way | Double suction | Flow | 0.5-2(m3/h) |
| Power | 0.37-5.5 | Rotate speed | 420-590(rpm) |
| Axis power | 0.37-5.5(kW) | Discharge diameter | 80(mm) |
| Suction diameter | 18-80(mm) |
| Model | 2XZ-0.5 | 2XZ-1 | 2XZ-2 | 2XZ-4 | 2XZ-8 | 2XZ-15 |
|
pump exhaust rate
(L/s) |
0.5 | 1 | 2 | 4 | 8 | 15 |
| Maximum pressure≤(Pa) | 6.0×10 -2 | 6.0×10 -2 | 6.0×10 -2 | 6.0×10 -2 | 6.0×10 -2 | 6.0×10 -2 |
| Rotate speed(rpm) | 1440 | 1440 | 1440 | 1440 | 1410 | 1420 |
| Motor power (kw) | 0.18 | 0.25 | 0.37 | 0.55 | 1.1 | 2.2 |
| Suction diameter (mm) | 16 | 16 | 25 | 25 | 40 | 40 |
- Country: China (Mainland)
- Business Type: Trading Company,Manufacturer,Distributor/Wholesaler
- Market:Asia,Americas,Europe,Middle East,Oceania
- Founded Year:2001
- Address:No.11, North of Kaiyuan Road, High-tech Zone, Jining City，Shandong Province, China
- Contact:mike jiang
