arc furnace carbon graphite electrode with nipples

Resistance
15 max
Place Of Origin
China (Mainland)
Apparent Density
1.52 min
Length
1000~2700mm
Flexural Strength
5.0MPa min
Packaging
in wooden case
Delivery
25 Days

Detailed introduction to rp,hp,uhp graphite electrodes with Dia.150-600mm:

Applications: Mainly used in electric arc furnace and ladle refining furnace for steel making; in electric smelting furnace for producing industrial silicon, yellow phosphorus, corundum etc..

Specifications:

Physical Properties RP Grade

(Dia.50-600mm)

HP Grade

(Dia.50-600mm)

UHP Grade

(Dia.50-600mm)

Electrical Resistance (max) μΩ-m Electrode 8.0 7.0 6.0
Nipple 6.5 5.5 5.0
Bending Strength (min) Mpa Electrode 11.0 12.0 12.0
Nipple 14.0 14.0 16.0
Elastic Modulus (max) Gpa Electrode 9.0 12.0 12.0
Nipple 12.0 14.0 14.0
Bulk Density (min) g/cm3 Electrode 1.56-1.60 1.65-1.70 1.66-1.72
Nipple 1.70-1.72 1.72-1.74 1.73-1.76
C.T.E (max) ×10-6/C Electrode 2.7 2.5 2.4
Nipple 2.5 2.2 2.0
Ash (max) % Electrode 0.30 0.30 0.20
Nipple
  • Country: China (Mainland)
  • Business Type:
  • Market:
  • Founded Year:2012
  • Address:north of guochang road at cheng'an county
  • Contact:Jerry Shi

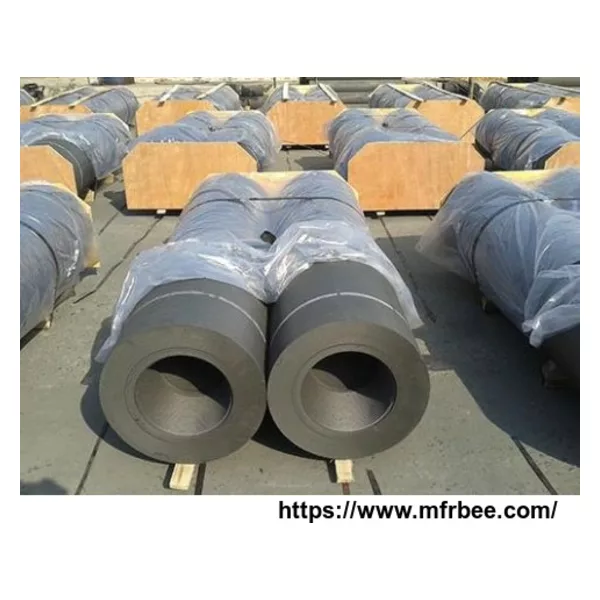

more images of arc furnace carbon graphite electrode with nipples
  • hyf_cetc@CN,2017-09-26 16:19:11
    Graphite Electrod: Diameter: 700 mm;Length: 2700 mm
    Nipple: diameter: 374.65 mm;length: 558.80 mm; type: long, 4TPI
    EAF: TYPE: AC-UHP-EBT; capacity:200 Tons, shell diameter:7.9 m
    Transformercapacity: 125 MVA (20% OVERLOAD)
    secondaryvoltage: 600- 1300 volts
    secondary current: 60 - 80 KA

    PLEASE GIVE ME MORE INFORMATION AND ESTIMATED FOB Price
    ALSO SEND THE COMMUNICATION MEANS TO ME.
    HU YONGFU: 1370 1010 635; 010 8220 9127
