18 circuits capsule slip ring compactfor CT equipment
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
LPC-18A JINPAT Slip Rings

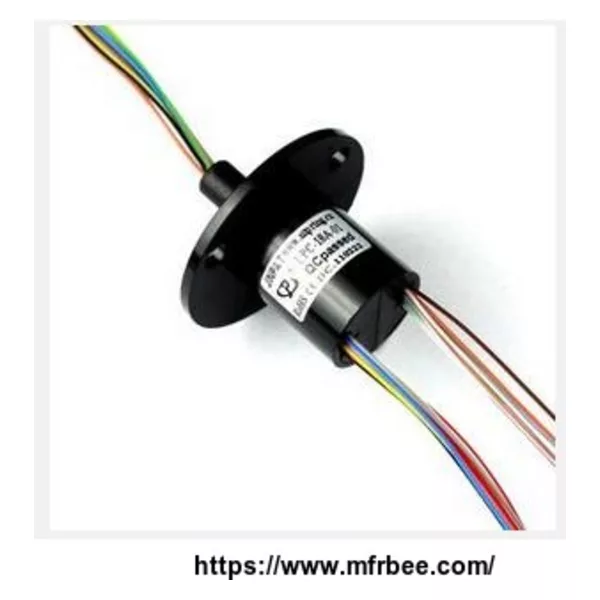

Capsule Slip Ring
Description
Slipringcan be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.
The LPC-18A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Slip Ring Features
18 circuits models
2 amps per circuit ,240VAC/DC
Speed up to 300 rpm continuous
Gold-gold contacts
Compatible with data bus protocols
Sealed units are also available
Flexible, color-coded, silver-plated, insulated lead wires
Transfer analog and digital signals
Also available with 5 and 10 amps power rings combined with 2 amps rings.
Precision ball bearings meet or exceed life requirements for most commercial applications
Slip Ring Advantage
Low torque minimize system torque budget
Compact design to fit in the most demanding space.
Smooth running
Low electrical noise
Quick shipment per your urgent requirement
360°continuous rotation
High bandwidth transfer capability
Addition of special components
Quick shipment
Main Application
Electrical test equipment
Manufacturing and process control equipment
Indexing tables
CCTV pan / tilt camera mounts
Robotics, rotary sensors, urgent illumination equipment
Exhibit / display equipment.
Aviation, military, instrument, medical equipment.
Mini-type wire-rolling machine
Closed-circuit control
| Specifications | |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 18 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 1mΩ Min |
Notes：
The operating life of the slip ring depends upon temperature, rotation speed and environment.
We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email
