Customized High Current Slip Ring,IP68 for Marine

Minimum Order
1
Packaging
N/A
Delivery
15 Days

Description

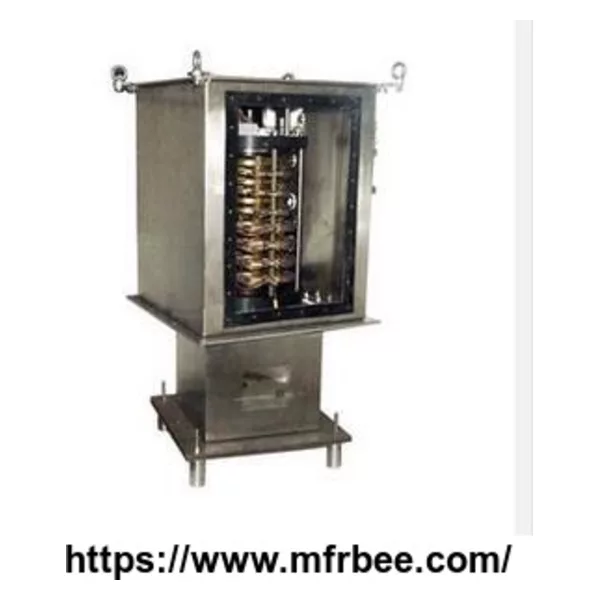

This kind of slip ring is customized totally according to customers' requirements that its protective grade is IP65, and it's anti-salt and fog, anti-corrosion, anti-impact, anti-shock, unique appearance, equipped with slip ring case and windows on case. This product can transmit various signals such as contacting, analog, communicating, telecom, and horn signals excepting for transmitting 630A current. Such product has been applied in central system of swing vessel.

Feature

Analog and digital signal transmission, and hybrid transmission are available

Ultra-long life time, regular maintenance

Transmitting current (Max. current 2000A)

Compositive signal circuit, exquisite in size


Model of Applied Sample Product
Technical Parameter
Total Circuits 59 circuits Current 9 circuits*630A; 5 circuits100A;5 5 circuits63A;40

40 circuits10A

Voltage Rating 660VDC/VAC;220VDC/VAC Max. Working Speed 10RPM
Through Bore Diameter No Appearance Size 600mm*600mm*1500mm
Housing Material Stainless Steal Torque 8N.M
Electrical Noise(Signal Part) ≤10mΩ at working speed of 50rpm) Contact Material Graphite/Precious metal
Dielectric Strength ≥3000V@50Hz Contact Resistance ≤10mΩ Working at the speed of 50rpm)
Insulation Strength 500MΩ@500VDC Wire Connecting Way Copper screw connecting bolt
Working Temperature –40°C~+80°C Working Humidity 80%RH
Protection Grade IP56 CE Certificate Yes
Material ROHS certificate
