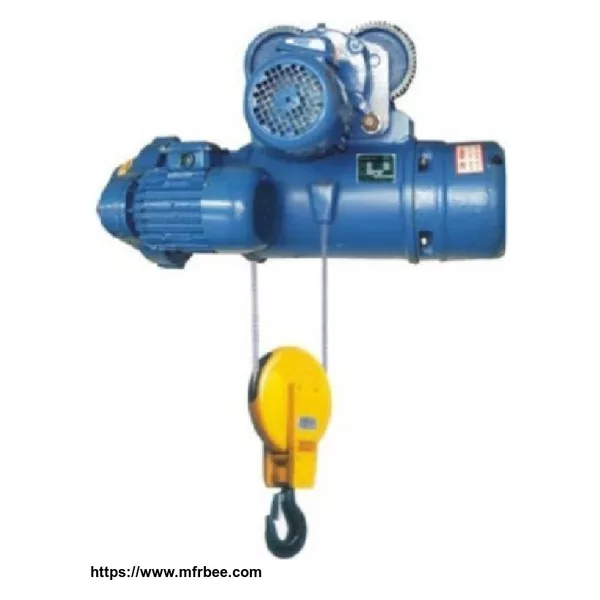

Wire Rope Hoist

Features

• Compact and smart structure, light weight.
• Smooth, convenient and ergonomic operation
• Safe and reliable, low noise
• Enhanced durability and Parts versatility
• Strong lifting capacity, easy to maintenance
• common-used parts, universal and strong compatibility
• Environmentally friendly
• Novel and Humanization design, good-looking appearance
• Efficient high lifting speed, smooth low lifting speed, precise positioning

Capacity 0.5Ton-20Ton

Standard Lift 6 m

Use Lifting Up/Down,Traversing Left/Rights

Drive Mode Motor

Sling Type Wire Rope

Operation With pedant cable push button or remote control

Power Supply 220v-700v, 50/60 Hz, 3 phase, single or dual voltage

Control Voltage 24v, 36v, 42v, 48v, 110v

H.S. Code 84251100

Electric Wire Rope Hoistcan be mounted on the straight or curve I beam and H beam of Singlegirder overhead cranes. Or be used together with Electric hoist Double-beam, Gantry crane, Slewing cranes, Jib cranes, EOT cranes, Portal cranes, Crane kits.

Trolley electric hoist can be installed with most cranes or hang on the steel girder, hoisting cargo in straight line or curve line; fixed electric hoist can be installed on fixed support and lift cargo with vertically or with different angles, can be widely used to lift heavy objects and is a popular light lifting equipment.

Detailed Description

1. Lifting motor

Brand: China top brand motor from Nanjing, It is of the best quality motors, it has bigger torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.

Lifting motor uses tapered rotor motor with strong staring torque to adapt frequent direct staring in the intermittent work.CD1 type hoist uses single speed motor and MD1 type hoist uses dual speed motor. Theratio of motor's constant speed and slow speed is 10:1

2. Speed reducer

The electric wire rope hoist use helical gear three stage reducer. Gear and shaft are made by alloy steel and high carbon steel and through proper heat treatment to ensure its reliability and service life. the reducer is independent, so its easy to load and unload it.

Box body and cover is made of cast iron to ensure hoist's good damping performance and reliable sealing.

3. Rope drum

Rope Drum is made of cast iron or seamless steel tube, using/with the help of spline transferring power.The sell of rope drum is welded with steel plate.

Grooved Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.

Rope drum is the central heart of a hoist. The upper side is linked with traveling mechanism through equalizing beam. Both ends are connected with lifting brake and motor respectively. The lower side works together with hook through wire rope. Up front of the cover, limiting stopper guide-rod and heavy punch stop block are installed.

4. Rope guide

Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of ours is thickened and dilated, so that it is not easy to be damaged.

5. Limit switch

Limit switch devices are fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
