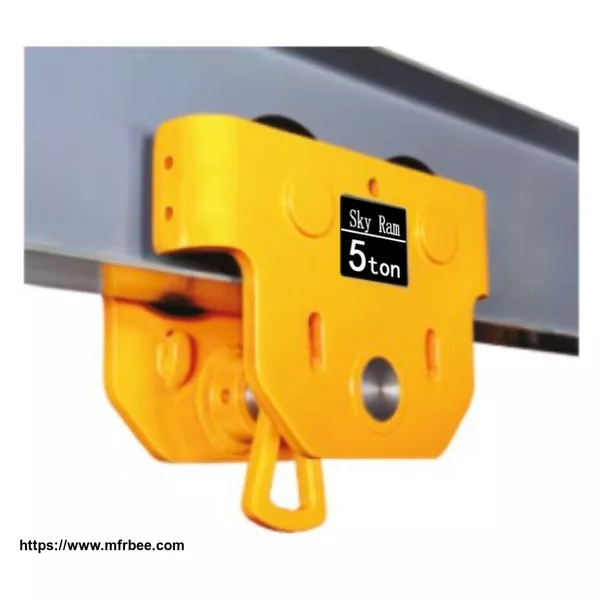

Plain Trolley

Features

• Safe, reliable and durable
• Simple structure and fine appearance
• Easy to operate and maintaince
• Wide selection of beam width
• Long service life

Capacity 0.5Ton-5Ton

Use Traversing Left/Right

Operation Manual handling

Wheel Four-wheel

Application I beam and H beam, flat or tapered beams, curved track

H.S. Code 84311000

Package Plywood case

XPTseriesPlain Trolleyis a kind of lifting device (lifting tool), also calledPush Trolley, Hand push trolley, Manual push trolley, Manual trolley, Hoist manual trolley, Hand trolley, Beam trolley and Hoist trolley.

It can be attached to chain hoist, electric hoist, single beam, cantilever crane or any other loading machinery to form a loading trolley. It can be easily running on the botton flange of standard I beam and wide H beam track at a curve radius of curvature tortuous path for loading and unloading. Widely used in factories, mines, docks, warehouses, construction sites, etc.,also for installation of machinery and equipment, lifting goods occasions, especially for non-power stations.

Plain trolley is one of a moving tool which requires manual handling to direct movement in a traverse direction.

By different way of driving , the trolley series can be divided into two types: Geared trolley and Plain trolley. The plain troley is operated by pushing the load and for the geared trolley, we can pull the hand chain to drive it.

Detailed Description

1. Body

Using high-quality steel

2. Precise trolley wheels

A contour trolley wheel design provides max. beam contact on flat or tapered beam.

The wheels are made to fit any shape of beam

Adjustable to any beam width, simply by adjusting the number of collars.

Spherical wheels can move on the slope gradient of less than 1:6

Multiple spacer washer make beam flange width adjustment quick and easy.

3. Ball bearings

High grade sealed, in the moving wheel.

4. Plates

Anti-drop, anti-tilt

Rugged Steel side plate formed to include bumpers and trolley guards,

Frames connected by the steel equalizer load crossbar secured by locking nuts and cotter pins.

5. Shaft

Stronger
