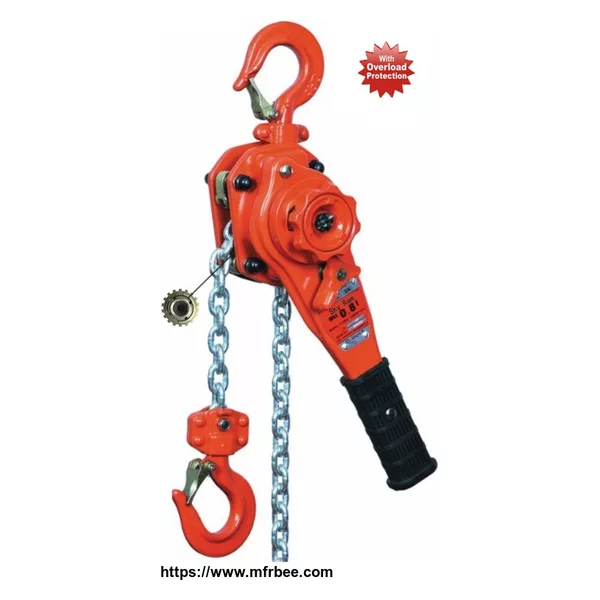

Chain lever hoist

Features

• Safe, reliable and durable
• Good performance, easy to use and easy to maintenance
• Small and light, portable in carrying
• Small hand force and high mechanical efficiency
• Advanced structure, stable operation, beautiful appearance
• Common-used parts, universal and strong compatibility
• Environmentally friendly

Capacity 0.8Ton-9Ton

Standard Lift 1.5m

Use Lifting Up/Down

Drive Mode Gear

Sling Type Chain

Operation Manual operated

H.S. Code 84251900

Package Cartons with pallet or plywood case

XLGSeriesLever Hoistis a kind of portable and versatile hand-operated loading and pulling appliance, also referred to as Lever block, Ratchet lever hoist, Chain lever hoist, Lever chain hoist, Lever chain block, Mechanical hoist and Manual hoist.

It utilizes a ratchet and pawl mechanical configuration to incrementally raise or lower a load or to apply or release tension, whichis capable of being applied in shipbuilding, electric power, transportation, construction, mining, telecommunications and other sectors of the equipment installation,lifting, pulling. Lever hoist is exceptionally convenient for working in narrow places, outdoor aloft work and pulling from different angles.

It is an indispensable tool for lifting and rigging, have an inherent ability to be used in vertical andhorizontal applications.

Application: Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane

Detailed Description

1. Gear

They are innovated symmetrical arrayed high speed synchronous gears, and are made of international standard gear steel. Compared with common gears, they are more wearable and steadier, and more laborsaving.

Standard international gear steel is two times as wear-resisting degree as the ordinary lever block, rotation is more stable and hand pulling force is more light.

2.Chain

Adopt high strong chain and high precision welding technology, meet ISO3077-1984 international standard; fit for gusty overload work conditions; bring your hands a better feeling; multi-angle operation:

changing the ordinary lever block only vertical downward pull, fit to greater scope.

Hand Chain: material A3, 30 grade,galvanized,

Lifting chain: material 20MN2, G80 grade,black.

3.Hook

Made of high-class alloy steel, it has high strength and high security by using the new design. andmakesure the goods will not be decoupled. yield under overload instead of breaking.

Top & bottom hooks are fitted with safety latches as standard.

4. Limit switch

Using limit switch component in design to protect the chain and ensure the security.

Both upper and bottom hook have limit switch part prevent chain escaping.
5.Components

The main components are all made of high-class alloy steel, with high precision and security.

Strictly size and weight checking to ensure full performance of each component.
6. Body

Fine design, modern and beautiful appearance; accord with human body engineering, the light machine
