Slip Ring diameter 22mm ,6circuits, 2A/wire
Product Quick Detail
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- Standard packing .Or according to customer's demand.
- Delivery
- 15 Days
Specifications
Capsule slip ring for radar antenna/robotics

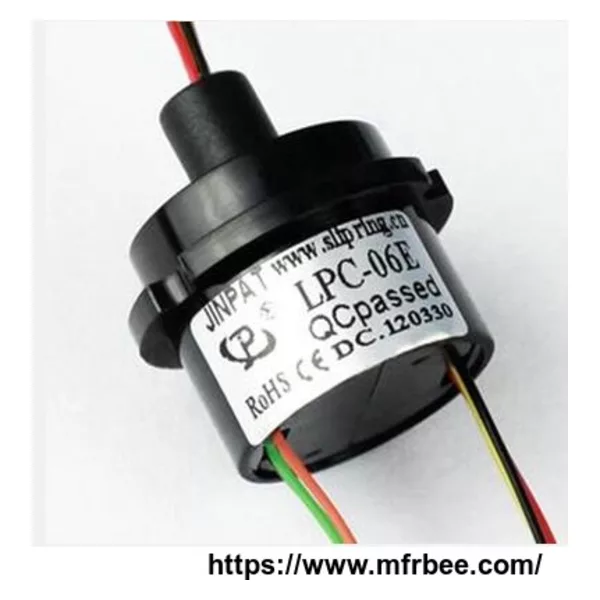

The LPC-06E slip ring capsule is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Using a 90° V-groove ring design for each ring, the LPC-06E provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in1- 6 circuit models.
Feature
6 circuits models
2 amps per circuit , 240 VAC /DC.
Precision ball bearings meet or exceed life requirements for most commercial applications
Speed up to 300 rpm continuous
Gold- gold contacts
Compatible with data bus protocols
Transfer analog and digital signals
Also available with 5 and 10 amps power rings combined with 2 amps rings.
Advantage
Low torque minimizes system torque budget
Compact design to fit in the most demanding space.
Smooth running
Low electrical noise
High bandwidth transfer capability
Main appliacation
CCTV pan / tilt camera mounts
Robotics, rotary sensors, urgent illumination equipment
Exhibit / display equipment
Aviation ,military ,instrument, medical equipment.
Min-type wire-rolling machine
| Specifications | |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 6 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 1mΩ Min |
The operating life of the unit depends upon temperature, rotation speed and environment
The operating life ≥50,000,000 runs ref.
LPC-06E Outside Drawing
Notice
We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.
