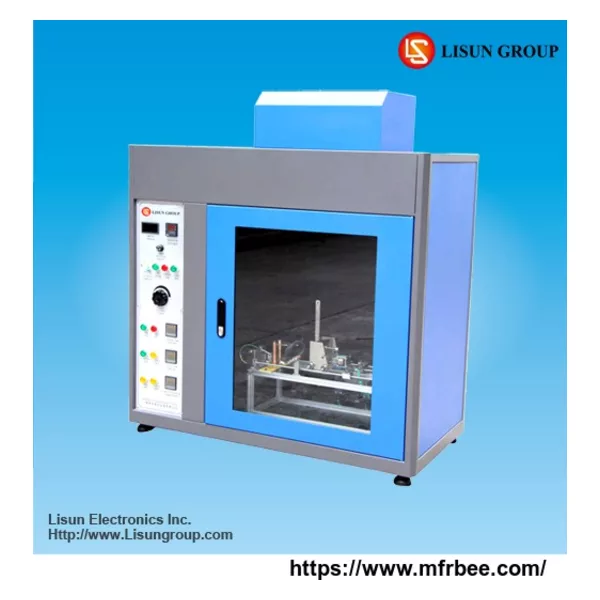

ZRS-3H Glow-wire Test Apparatus
Product Quick Detail
- 3000
- 3500
- Minimum Order
- 1
- Packaging
- Wood case
- Delivery
- 15 Days
Specifications
Specification:
• Thermocouple diameter: 1mm K type, import insulated thermocouple which can endure high temperature, and it can endure about 1100℃(superior to standard
1050℃)
• Heating temperature: adjustable continuously within the range of ≤500~1000℃, the accuracy of temperature is 1℃, the resolution of temperature is
±3℃.
• Glowing time: 0.1~999.9s±0.1s (time range is adjustable).
• Burning time: 0.1~999.9s, auto record, manual pause.
• Flame chilling time: 0.1~999.9s, auto record, manual pause.
• Glow wire pressure on test specimen：0.95±0.1N. Limit pressure depth is 7mm.
• Glow wire: 77%Ni/20±1%Cr and made in specific dimensions.
• It is according to IEC60695-2-10:2013 (Edition 2.0)
• Applied with touch screen and remote control unit (ZRS-3HS)
• Customer need to prepare additional ventilation system for ZRS-3HS
Refer more:http://www.lisungroup.com/product-id-204.html
Contact us: Email:Sales@Lisungroup.com
Tel: +86(21)5108 3341 Mobile: 18917996096
