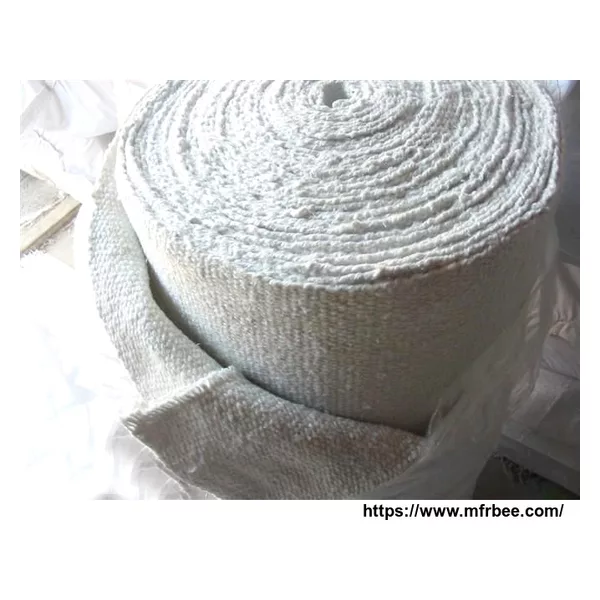

Ceramic Fiber Cloth
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- in wooden case
- Delivery
- 15 Days
Specifications
Ceramic Fiber Cloth is a woven fabric made from our high quality ceramic fiber yarn. It can be used for high temperature applications up to 1260-1430C. The cloth is reinforced with
fiberglass filament, and optional Inconel/alloy steel wire. Ceramic fiber textiles (cloth, tape and rope) contain a certain amount of binder material which is normally burned at lower temperature and
does not affect the insulation property. Insert material of metal wire and fiberglass filament are incorporated into the yarn. To increase tensile strength of the fabrics both before and
after exposure to heat. Typical applications of cloth, tapes include gaskets, seals, furnace and welding curtains or pipe wrapping.
JK1260 Ceramic Fiber Cloth is a cost-effective industrial cloth manufactured from ceramic fiber yarn, reinforced by a core of glass filament or stainless steel wire for high strength retention at elevated temperatures, ideal for most high temperature applications up to 1260C.
JK430 Ceramic Fiber Cloth is a high performance industrial cloth made from zirconia grade ceramic fiber yarn, reinforced by high temperature alloy wire. It is durable, long-lasting product, ideal for high temperature applications up to 1430C. Our Cloth contains approximately 18% organic fiber which burns out at high temperatures, causing some smoking and outgassing, but the cloth retains enough strength to be used as effective insulating cloth at high temperatures.
Ceramic Fiber Cloth Characteristics:
1. Excellent insulating performance
2. Low thermal conductivity
3. Excellent tensile performance
4. Excellent high-temperature resistance
5. Non-toxic, harmless and no bad influence on environment;
6. Excellent electric insulation
7. Excellent anti-corrosion of acid, oil and vapor
Ceramic Fiber Cloth Standard Sizes:
1. Thickness: 1.5, 2, 3, 5, 6mm
2. Width: 1000mm, 1200mm
3. Length: 30m, 50m or according to customer's requirement
Ceramic Fiber Cloth Technical Index:
Ceramic Fiber Cloth Applications:
Typical applications of ceramic fiber cloth include: expansion joints, safety blankets, curtains, welding blankets, protective and insulating covers, shields, gaskets, cable or pipe wrapping, etc. It has been widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, shipyards, refineries, power plants and chemical plants.
--Seal of curtain and furnace door of furnace in high-temperature industry
-- Insulation of high-temperature pipe and container
--Soft seal of furnace pipe in petrochemical industry
--Protection for cable and fuel pipe
-- High-temperature protection and compound material manufacture
--Fireproofing rolling shutters
--Furnace curtains
--Protection against high temperature
--High temperature electrical insulation
-- Welding curtains and blankets
-- Insulation of industrial chimney
Ceramic Fiber Cloth Package:
30M/Roll, or 50kg/Roll or as customers requested,
Packed in plastic woven bag
JK1260 Ceramic Fiber Cloth is a cost-effective industrial cloth manufactured from ceramic fiber yarn, reinforced by a core of glass filament or stainless steel wire for high strength retention at elevated temperatures, ideal for most high temperature applications up to 1260C.
JK430 Ceramic Fiber Cloth is a high performance industrial cloth made from zirconia grade ceramic fiber yarn, reinforced by high temperature alloy wire. It is durable, long-lasting product, ideal for high temperature applications up to 1430C. Our Cloth contains approximately 18% organic fiber which burns out at high temperatures, causing some smoking and outgassing, but the cloth retains enough strength to be used as effective insulating cloth at high temperatures.
Ceramic Fiber Cloth Characteristics:
1. Excellent insulating performance
2. Low thermal conductivity
3. Excellent tensile performance
4. Excellent high-temperature resistance
5. Non-toxic, harmless and no bad influence on environment;
6. Excellent electric insulation
7. Excellent anti-corrosion of acid, oil and vapor
Ceramic Fiber Cloth Standard Sizes:
1. Thickness: 1.5, 2, 3, 5, 6mm
2. Width: 1000mm, 1200mm
3. Length: 30m, 50m or according to customer's requirement
Ceramic Fiber Cloth Technical Index:
| Item | Ceramic fiber Cloth | |
| Color | White | |
| Al2O3 | >48% | |
| Al2O3+SiO2 | >97% | |
| Fe2O3 | <1.1% | |
| Classificate Temperature | 1430C | |
| Working Tempearture | Fibe glass filament: 800C | |
| Steel wire: 800-1430C | ||
| Density | 550-650kg/m3 | |
| Fiber diameter | 2-5um | |
| Fiber length | 100-200mm | |
| Moisture content | <0.5% | |
| Themal conductity | 300C | 0.12-0.13w/(m.k) |
| 600C | 0.13-0.16w/(m.k) | |
| 1000C | 0.17-0.20w/(m.k) | |
| acid/alkalis resistant (72h in 10% NaOH/H2SO4) | Remain 50% | |
| loss on ignition | <18% |
| Item | P1100 | P1260 | P1360 | P1430 | |
| Classification Temperature | 1100C | 1260C | 1360C | 1430C | |
| Permanent Linear Change(%) | 950x24h ≤-3.5 | 1100x24h ≤-3.5 | 1200x24h ≤-3.5 | 1300x24h ≤-3.5 | |
| Chemical analysis (%) | AL2O3 | 43 | 47 | 55 | 38 |
| SiO2 | 53 | 51 | 44 | 44 | |
| Fe2O3+Ti2O3 | ≤1.2 | ≤0.3 | ≤0.3 | ≤0.2 | |
| CaO+MgO | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | |
| NaO+K2O | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.2 | |
| Thermal Conductivity (W/m.k) | 400 | 0.07 | 0.07 | 0.069 | 0.068 |
| 600 | 0.09 | 0.09 | 0.088 | 0.087 | |
| 800 | 0.12 | 0.12 | 0.11 | 0.1 | |
| Organic Content(%) | 10 | 8 | 8 | 8 | |
| Tensile Strength (≥ Mpa) | 0.5 | 0.65 | 0.7 | 0.75 | |
| Density (kg/m3) | 180-220 | ||||
| Moistures(%) | ≤1 | ||||
| Size (mm) | 10000-400000x610/1220 | ||||
| Thickness (mm) | 0.5-6 |
Ceramic Fiber Cloth Applications:
Typical applications of ceramic fiber cloth include: expansion joints, safety blankets, curtains, welding blankets, protective and insulating covers, shields, gaskets, cable or pipe wrapping, etc. It has been widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, shipyards, refineries, power plants and chemical plants.
--Seal of curtain and furnace door of furnace in high-temperature industry
-- Insulation of high-temperature pipe and container
--Soft seal of furnace pipe in petrochemical industry
--Protection for cable and fuel pipe
-- High-temperature protection and compound material manufacture
--Fireproofing rolling shutters
--Furnace curtains
--Protection against high temperature
--High temperature electrical insulation
-- Welding curtains and blankets
-- Insulation of industrial chimney
Ceramic Fiber Cloth Package:
30M/Roll, or 50kg/Roll or as customers requested,
Packed in plastic woven bag
