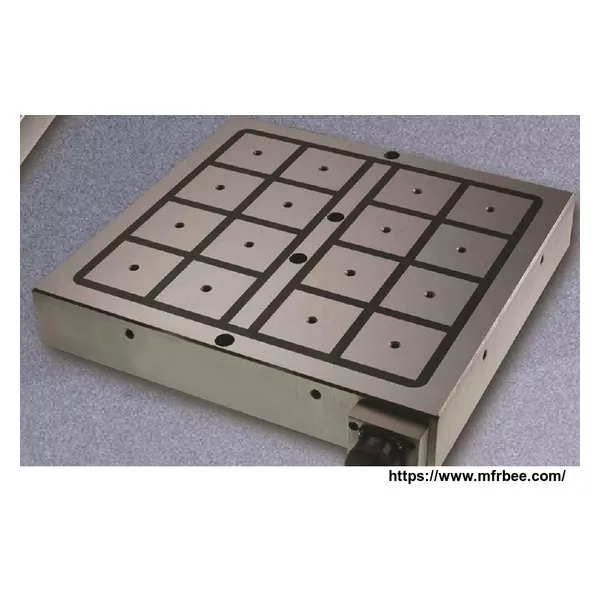

16.Chinacoal10 DYCC2 series Electro permanent magnetic chuck
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
cnc power chuck , DYCC2 series Electro permanent magnetic chuck, Electro permanent magnetic chuck
Product Description chinacoal10
DYCC2 series Electro permanent magnetic chuck for vertical lathe. Precision CNC five-axis indexing unit and integrated five-axis CNC cutting machine tool used in conjunction.
DYCC3 series circular electro permanent magnet chuck for lathes,uses the unique variable cross-section magnetic pole structural design,The outer diameter increase clamping strength gradually,Dual magnetic circuit design,T-slot design of the magnetic field superimposed, Mobile pole extensions ensure perfect clamping or irregular work pieces and machining it flat and parallel
Product Main Technical Parameters
| Type&Data | Magnetic pole number | Total magnetic force(≤KN) | Overall dimension(mm) | weight(kg) | ||
| D | d | H | ||||
| DYCC2-500 | 12(rectangle)/4(F50 square) | 70 | 500 | -- | 70 | 100 |
| DYCC2-600 | 12(rectangle)/4(F50 square) | 100 | 600 | -- | 70 | 140 |
| DYCC2-800 | 16 | 160 | 800 | 250 | 80 | 270 |
| DYCC2-1200 | 16 | 200 | 1010 | 250 | 80 | 440 |
| DYCC2-1250 | 24 | 360 | 1260 | 500 | 90 | 710 |
| DYCC2-1500 | 24 | 480 | 1520 | 500 | 100 | 1220 |
| DYCC2-1600 | 40 | 600 | 1620 | 800 | 125 | 1530 |
| DYCC2-1800 | 40 | 800 | 1820 | 800 | 125 | 2020 |
