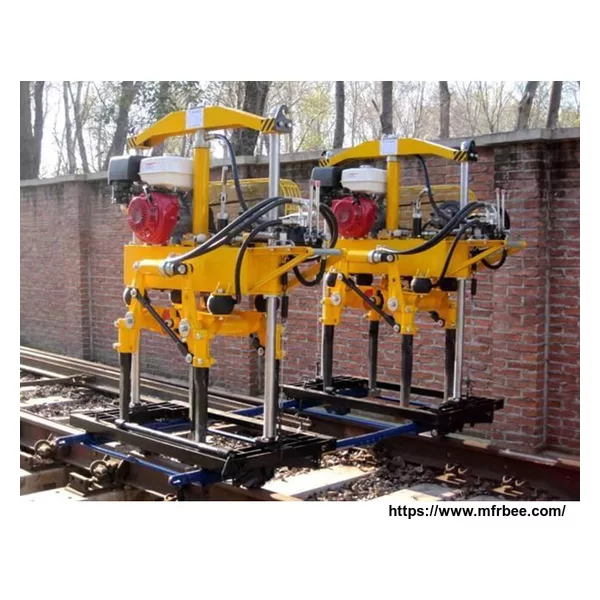

YCD-22 Type Hydraulic Switch Tamping machine

Hydraulic Switch Tamping machine

Tamping machine

Production chinacoal10

It's suitable for tamping operation within the most complicated and difficult switch section

railway maintenance of one meter gauge track.It can be used to tamp at the section of switcher,turn out connection,frog and guardrail.It is easy to be operated light in weight,

enjoys high working efficiency and low faiure rate.It can satisfy railway ballest tamping operation requirment.

engine type	honda GX270
engine power	6.6kw
vibrating frequency	60~67Hz
exciting force	22kN
working system pressure	4-5MPa
inserting depth underneath sleeper	110mm±10mm
weight	300kg
overall denmention	1200*520*1650
working efficiency	240pieces/h

https://www.cntransportintl.com
https://m.chinacoalintl.com
we provide service of enterprise's customs declaration, inspection.

0.7p�ts�?��^�204,204,204);border-bottom:0.7500pt solid rgb(204,204,204);mso-border-bottom-alt:0.7500pt solid rgb(204,204,204);background:rgb(255,255,255);" >

45-60mm

Impact Forces:

1600kg

Impact Frequency:

400-600T/min

Travel Speed:

12-15m/min

Plate Size:

275*330mm

N.W:

80kg

G.W:

100kg

Packing Size:

1100*750*460mm
