Axial Hydraulic Generator
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Keyword:generator,hydraulic generator,axial hydraulic generator
m.chinacoalintl.com
Product Introduction chinacoal10

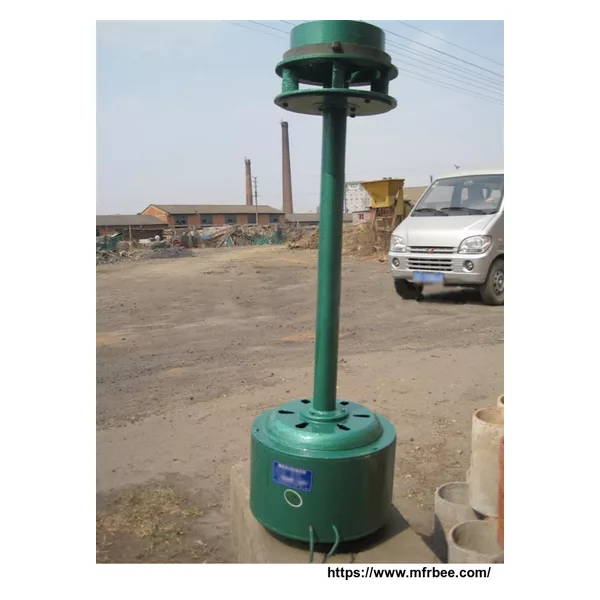

The Hydro turbine power axial flow (vertical axis) turbine generator unit consists of a whole generator and turbine with non-adjustable blades on a common shaft. It’s suitable for places with low head and small flow, for example, the bank of a small river or near the base of a small dam. It requires 1.5 meter and 3 meters of head (vertical drop) to operate.
Main Parameter
| Model |
Power
(kW) |
Water
meter (m) |
Flow rate
(m3/s) |
Speed
(r/min) |
Runner
pages cm |
| ZD760-LM-10 | 0.3 | 1-2 | 0.021-0.03 | 500-1500 | 10 |
| ZD760-LM-10 | 0.5 | 1-2 | 0..023-0.035 | 500-1500 | 10-12 |
| ZD760-LM-12 | 0.6 | 1.2-2 | 0.018-0.05 | 500-1500 | 13 |
| ZD760-LM-15 | 1 | 1.5-2.5 | 0.02-0.07 | 500-1500 | 15 |
| ZD760-LM-15 | 1.5 | 1.5-3 | 0.03-0.08 | 500-1500 | 15 |
| ZD760-LM-(18-20) | 2 | 1-3.5 | 0.08-0.1 | 500-1500 | 18 |
| ZD760-LM-(18-20) | 3 | 1.5-3.5 | 0.08-0.15 | 500-1500 | 18 |
| ZD760-LM-20 | 5 | 2.5-5.5 | 0.1-0.15 | 500-1500 | 20 |
| ZD760-LM-20 | 5 | 2.5-5.5 | 0.1-0.15 | 1500 | 20 |
| ZD760-LM-20 | 5 | 2.5-5.5 | 0.1-0.15 | 1000 | 20 |
