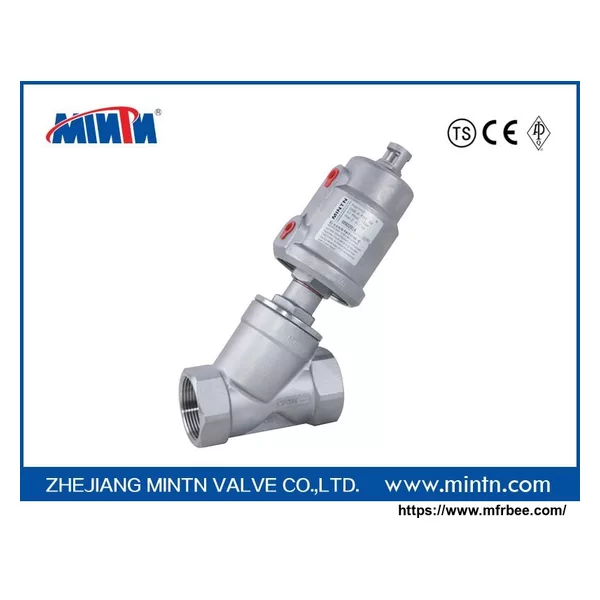

Pneumatic Angle Seat Valve Thread Connection
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Technical Data:
Fluid Pressure : Max×1.6MPa（232psi）
Control Pressure：0.3-0.8MPa（43.5-116psi）
Control Fluid：Neutral gas，Air
Actuator Size：27mm，32mm，40mm，50mm，63mm，80mm，100mm，125mm
Applicable Fluid：Water，Alcohol，Oil，Dye，Steam，Neutral gas or liquid，Organic solvent，Acid and lye
Fluid temperature：-10℃-+180℃，25℃-+220℃
Ambient temperature：-10℃-+80℃
Control Type：Normally closed，Normally open，Double acting
Connection: Threaded(BSP.BSPT,NPT),Welded, Flanged, Tri-clamp
Main Materials ：
Body Material：CF8M(SS316),CF8(SS304)
Seals Material：PTFE
Actuator Material：CF8 (SS304)
Applications:
Beer& Drink Filling Machinery
Textile printing& Dyeing
Gas industry
Pharmacy& Medical Equipment
Chemical industry
Disinfection
Frothing Equipment
Water/sewage Disposal
Advantages:
1.Large Flux, low Resistance, No Water-hammer Y-type Shape Enlarged The Flowing Section, which Could Raise The Flux By 30% And Make Flow More Smooth
2.Super Long Life.
3.Which Help The Stem Adjust And Lubricate Itself Automatically.
4.The Cylinder Material is Stainless Steel.Lubricating Automatically,360 Rolling Freely.
