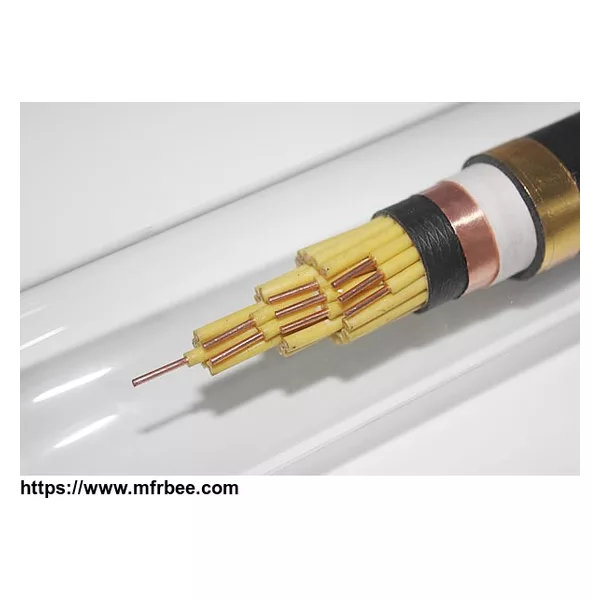

Control Cable

control cable underground(KYJY33)is mainly used for system connection wire of control,signal,protection or measuring for rated voltage up to and including 450/750V.

PE control cable underground Description

1.APPLICATION

PE control cable underground(KYJY33)is mainly used for system connection wire of control,signal,protection or measuring for rated voltage up to and including 450/750V.

2.CONSTRUCTION

PE control cableunderground Conductor

Preferred Number of cores:

2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52,61

The conductors shall comply with the requirement given in IEC 60228 for class 1 or 2.

-class 1 for solid conductors;

-class 2 for stranded conductors.

PE control cable underground Insulation

Cross-linked Polyethylene XLPE according to IEC

PE control cable underground Sheathed

PE(Polyethtlene)according to IEC

Other special application cable can be provided upon requests:

Fire-resistant,Flame-retardant,Low-halogen,Non-halogen,Low-fume,Low-smoke,as well as acid-alkali-proof,High temperature resistant,Termite and Rodent resistant,Water proof series and so on.

3.CHARACTERISTICS

PE control cable underground Conductor temperature

Maximum conductor temperature in normal use:90ºC

PE control cable underground Installation temperature

Ambient temperature under installation shall not be below 0ºC

Max.temperature of conductor under short circuit

-(Max.Duration 5 sec.)

XLPE Insulated:250ºC
