Good Performance Saw dust briquette machine

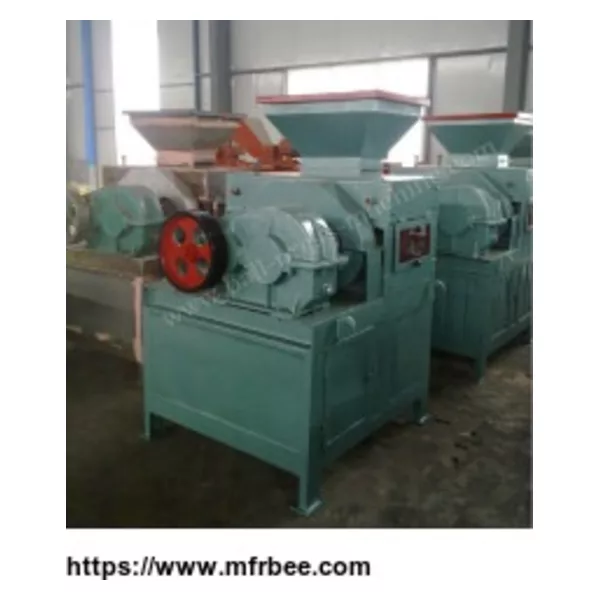

Saw dust briquette machine

1. Product introduction:

Saw dust pressure ball machine can be used to suppress the sawdust, coke powder, rice husk and other various powder, powder materials, waste, waste, widely used in refractories, power plant, metallurgy, chemical industry, energy, transport, heating and other industries, the pressure ball machine production of molding material, environmental protection and energy saving, convenient transportation, improve the utilization rate of the fertilizer, and has good economic benefit and social benefit.

2. Composition structure:

1. Feeding part: mainly to realize the quantitative feeding to ensure the material evenly into the roller. The screw feeding device is driven by an electromagnetic speed regulating motor, and is driven by a belt pulley and a worm reducer to force the material to be pressed into the main material inlet of the main machine. Due to electromagnetic adjustable speed motor constant torque characteristics, when the spiral feeding machine material pressure feeding amount and the host material is equal to the amount of indoor requirement, can maintain constant feeding pressure stabilizing the quality of pellet. If the feeding amount is too large, then the electrical overload feeding device; the feeding quantity is too small not into a ball. So skilled operation is an important condition to ensure the normal operation of the press ball.

2. Drive part: the main drive system is as follows: the motor - triangular belt - speed reducer - Open Gear - roller. Host by electromagnetic adjustable speed motor provides the power to the belt wheel, a cylindrical gear reducer; the pin coupling is transmitted to the drive shaft. The driving shaft and the driven shaft are guaranteed to run synchronously through an open gear. A hydraulic device is installed behind the passive bearing seat. The hydraulic protection device is driven by the hydraulic pump, the high-pressure oil is driven into the hydraulic cylinder, so that the piston generates axial displacement. The front of the piston rod is connected with the top of the head to meet the requirement of production pressure.

3. Molding part: mainly refers to the host part, the core part is the pressure roller. When the between the two rollers feed or into the metal block, pressure overload of the hydraulic cylinder piston, hydraulic pump will stop, energy storage device to pressure changes from buffer, overflow valve open return oil, piston rod displacement pressure and gap increase so that a hard object through a pressure roller, system pressure recovered to normal can to protect the pressure roller is not damaged. The machine can be adjusted according to the requirements of the pressure ball density, flexible production.

3. Performance characteristics:

1. Sawdust pressure ball machine does not need to go to the broken pieces.

2. Sawdust pressure ball machine products which reduce the impurity.

3. Sawdust pressure ball machine now and the whole original tinkling Se and reduce the cost for living among the skin. In addition, according to the different needs of users, can meet the requirements of different shapes and sizes, and get the user's praise.

Gongyi Fu Yu Machinery Co., Ltd. is specialized in the production of pressure ball machine, welcome to consult the factory, telephone 86-18538292735, http://www.ball-press-machine.com. E-mail:fybriquettemachine@yahoo.com.
