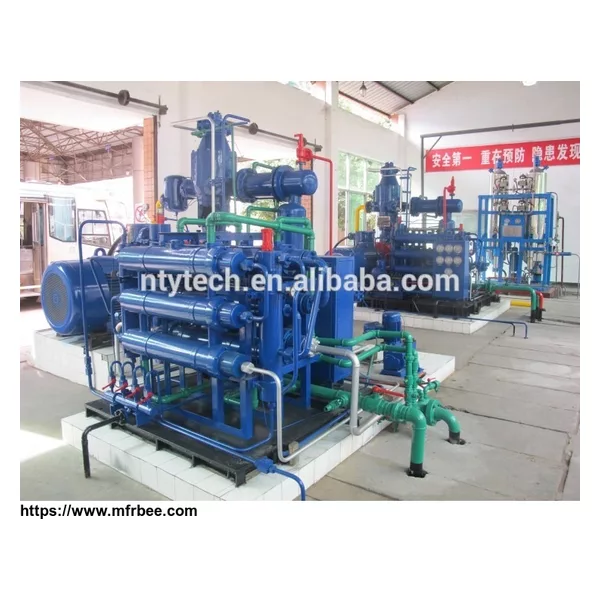

Oil-free Reciprocating High Pressure Oxygen Gas Compressor
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- polywood box
- Delivery
- 60 Days
Specifications
Oil-free Reciprocating High Pressure Oxygen Gas Compressor
A reliable and uninterrupted operation of this unit (for the three options), in conjunction with the existing one is of essence. This mode of operation must be ascertained in all facets like : design, selection of equipment, accessories and controls, fabrication and construction of the unit, stand-by equipment and spares, etc.
The performance of the Oxygen Generator is shown in Table 1, below :
Table 1
| PRODUCT | OXYGEN |
| % Vol. Composition | 100 |
| Form | Gaseous |
| Outlet pressure | 15.0 bar g minimum at the battery limit |
| Flow operating Case 1 (Nominal) | 150 Nm3/h |
| Flow: operating case 2 (Peak) | 250 Nm3/h |
| Flow: operating case 3 (minimal) | 50 Nm3/h |
| Storage capacity | |
| Molecular Weight | 31.999 |
| K = Cp/Cv | 1.396 |
| Inlet Pressure (at supply battery limit) in bar(g) | 0.05 to 0.35 bar(g) |
| Inlet Temperature (at supply battery limit) inOC | 35 |
| Compressibility Z1/Z2 | 0.999/0.995 |
| Outlet Temperature (at outlet battery limit) inOC | <50 |
The above performances correspond to the following ambient conditions :
Atmospheric pressure: 1013 mbar g
Atmospheric temperature: 35 °C
Atmospheric humidity: 85%
Cooling water temperature: 32 °C
Cooling water temperature rise min. 5 oC, max 8oC
The plant shall be designed to operate under the following range of conditions:
Minimum Maximum
Air temperature 0 °C 40 °C
Atmospheric humidity 50% 85%
