SMT PCB Printing Frame

Place Of Origin
China
Minimum Order
10 pieces
Packaging
carton box
Delivery
15 Days

PCB Assembly SMT frame

Product Description

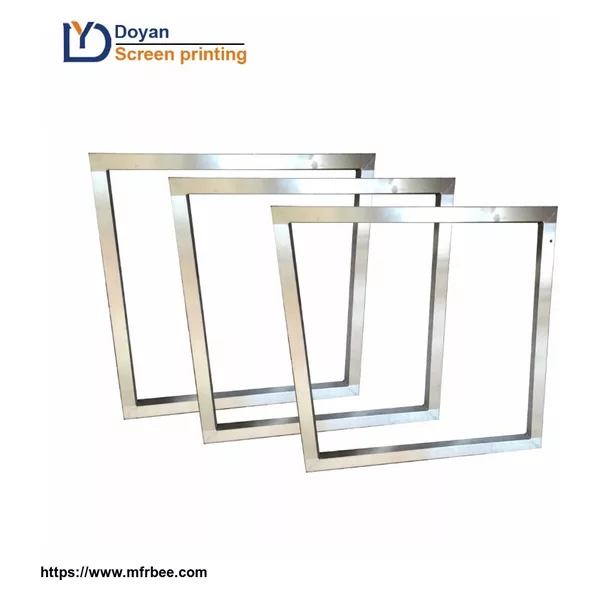

Framed SMT Stencils are designed for high volume screen printing on printed circuit boards. These SMT stencils otherwise known as "glue-in" stencils are laser cut solder paste stencils permanently mounted in a stencil frame using a mesh border to tightly stretch the foil into the frame.

We even have a program where existing stencils in their frames can be re-used for your newer stencil requirements. Credit is given to you for turning these while eliminating the clutter and the space requirements in storing these stencils.

BEST fabricates framed SMT stencils for a variety of stencil printers and can deliver them in a timely fashion.

SMT Frame Size Aluminum profile
736x550mm 30x40x2.0mm
650x550mm 30x40x2.0mm
600x550mm 30x40x2.0mm
15x20" 25x38x1.6mm

23x23"

12.7x38.1x2.5mm
25x38x1.6mm
38x38x2.0mm

29x29"

12.7x38.1x2.5mm
38x38x2.0mm
40x40x2.0mm
SMT Meshed Frame

Stretched mesh Adhesive

24T/29T/36T

Tension:30-40N

Epoxy AB glue

SMT Stencil

Frame size SS Sheet thickness SS sheet size

736x550mm

650x550mm

600x550mm

15x20"

23x23"

29x29"

0.08mm

651x420mm

470x420mm

520x420mm

10x15”

18x18”

18x18”

18x18”

24x24”

24x24”

24x24”

0.09mm
0.10mm
0.11mm
0.12mm
0.13mm
0.15mm
0.20mm
0.25mm
0.30m
