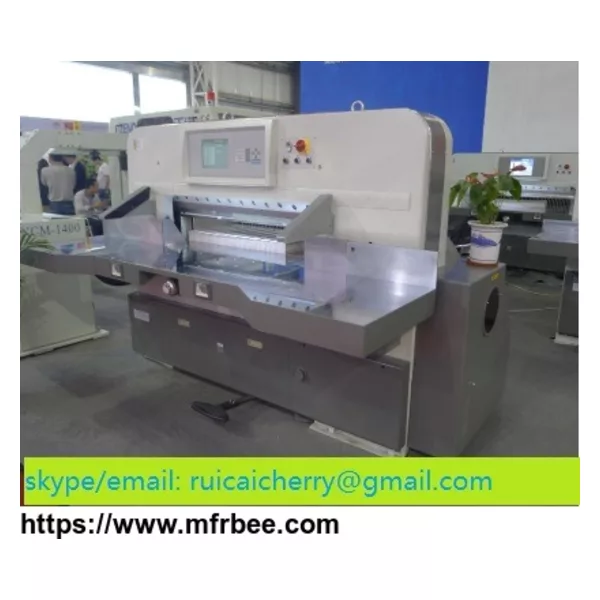

Best price high quality Paper Cutting Machine
Product Quick Detail
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Ruicai Electron is one Chinese company, mainly manufacture paper cutting machine, creasing machine, perfect binding machine,
roll laminator and related office and graphic machinery. We can provide one-stop solution to our customers all over
the world. Please dont hesitate to contact us if you interest. Welcome to contact us by mail or Skype or from our website: ruicaichina(dot)com
| Model | QZK920M10 |
| Max Cutting Size(L*W) | 940*940mm |
| Max Cutting Thickness | 120mm |
| Front Table Length | 610mm |
| Main Motor Power | 3000W |
| Max Clamping Power | 3500Dan |
| Cutting Speed | 42 times/min |
| Machine Weight | 2300kgs |
| Machine Size | 2.2*2.1*1.5m |
| Packing Size: | 2.3*1.5*1.9m |
| Introduction | |
|
l High quality casting part made by resin bonded sand way.
l Chrome-plated slot-less working table installed with double imported linear guide and air cushion. l With ball lead screw l Mechanical assistance device for knife replacement l Overload protection safety device l Infrared photoelectric protection device l Knife cutting only operated by pressing two buttons at same time l Fluorescent lamp and cutting line indicator l Ejective device for knife bar l Use imported components in Hydraulic system l Use imported electronic units like Siemens, TOSHIBA, Omron, LG, Schneider, Fotek and Delta l Omron PLC control l Driven by Servo motor, the maximum speed of the back gauge is 18 m/min l Use imported Mechanic components like NSK Bearing l Single Hydraulic l Adjust hydraulic pressure manually and the paper can be pressed twice by pressure-increased system. |
|
|
The description of computer
l Four language choice (Chinese ,English, Spanish and Portuguese) l Units could be toggled between Metric & Imperial l M10’s back gauge has the position resolution of 0.05mm, closed-loop controller, electrical position error of 0.05mm and no need for position error adjustment l M10 has the storage capability of 248 cutting programs. For each program, the machine will stop cutting until the paper pusher arrive at the middle limited position. After detach the false clamp and switch to program status, the machine will stop cutting until the paper pusher arrive at the front limited position. During this process, there is no limited on cutting capacity) l 50 type of malfunction diagnose and misoperation preserve functions of M10 l Driven by a Delta sever driver, the maximum speed of the back gauge is 18 m/min l Dialogue based programming environment and touch sensitive LCD
l Auto operation function |
- Country: China (Mainland)
- Business Type: sales
- Market:
- Founded Year:1995
- Address:NO.49, Suli Road, Wuzhong Distract, Suzhou City, Jiangsu Province, China
- Contact:cherry zhou
