Introduction

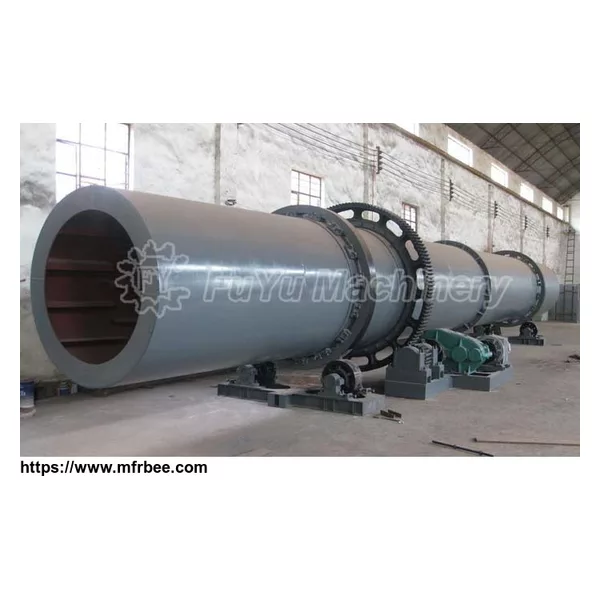

Mineral Powder drying machine is widely used in building materials, metallurgy, mineral processing, chemical, cement and other industries, mainly used for slag, limestone, clay, sand, quartz sand,
water, slag and other wet and heavy materials. Slag drying production line, mainly by the rotating cylinder body, a wind guiding device, high-speed scattered equipment, lifting plate, automatic
cleaning device, a transmission device, conveying equipment, air equipment, reducer, a supporting device and a sealing device etc. parts. The full set of drying equipment design is reasonable, the
production of excellent, stable performance, advanced technology, high output, low energy consumption, small area, high degree of mechanization, the advantages of high degree of mechanization.
Application Range
Mineral Powder drying machine, drum dryer is a kind of material handling a large number of materials. As a result of the operation is reliable, the operation is flexible, the adaptability is strong,
the processing capacity is large, and is widely used in metallurgy, building materials, food, light industry, chemical industry, coal, pharmaceutical industry. Rotary drum dryer is generally used in
granular materials, and can also be used for some of the method of the infiltration of the material to dry sticky paste material or higher moisture content of the material. It has the advantages of
large production capacity, wide application range, small flow resistance, operating on a wide range of allowable fluctuations, easy operation, etc.. Slag dryer, drum dryer commonly used in dry sand,
slag, slime, chicken manure and cow dung etc.
Technical Parameters
Model: FYD-10*10
Capacity: 3.3-4.9t/h
Power: 5.5kw
Rotation Speed: 5.8r/min
Reducer Model: JZQ 400-16-I
Weight: 7.5t
