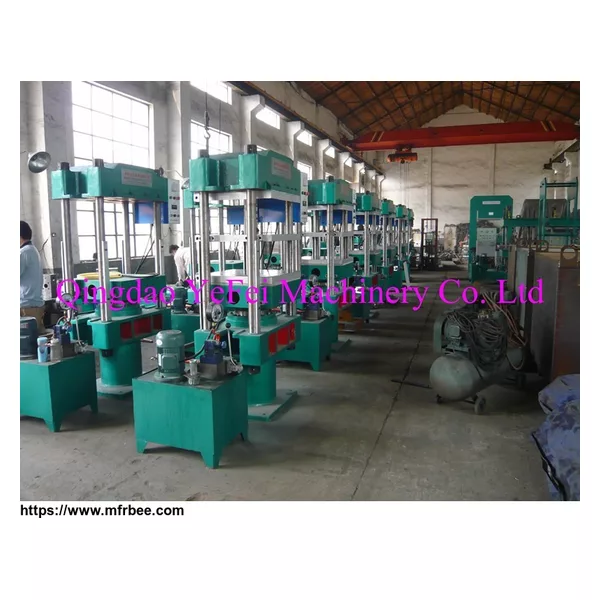

1.5MN plate curing machine rubber vulcanizing machine
Product Quick Detail
- FOB Price
- USD $8,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- 1Set each Mood Box
- Delivery
- 30 Days
Specifications
① Four pillars type duplex structure, independent control on both sides, mutual non-interference in the operation, greatly reducing maintenance more difficult in the future.
Automatic open and close mold, automatic deflation, automatic stopping, automatic filling
pressure, automatic pushing out of mold, automatically open the top flap.
② The material of master cylinder is QT500··7, The material of piston is Chilled alloy cast
iron , high strength, good wearability.
③.PLC,hydraulic and electric combined intelligent control, automatic intelligent constant
temperature, the number of deflation , the pressure of deflation and stuffiness time and
deflation stroke is adjustable ; curing pressure and curing time is adjustable.
④. Working performance is stable, the main electrical parts completely use the highest
power electrical components of the DELIXI, stable performance, long life.
| Type | XLB-QD450*450 | XLB-QD600*600 | XLB-QD700*700 | XLB-QD800*800 | XIB-QD900*900 |
| Mouldclosing Force(MN) | 150T | 250T | 250T | 300T | 500T |
| Plate Unit Area Pressure(MPa) | 7.4 | 7.1 | 5.1 | 4.6 | 6.1 |
| Plate Size(mm) | 450*450 | 600*600 | 700*700 | 800*800 | 900*900 |
| Working Layers | 1 | 1 | 1 | 1 | 1 |
| Plunger Diameter(mm) | 400 | 400 | 450 | 450 | 500 |
| Maximum Plunger Stroke(mm) | 400 | 400 | 400 | 400 | 400 |
| Daylight opening(mm) | 450 | 450 | 450 | 500 | 500 |
| Pump Power(kW) | 5.5 | 7.5 | 7.5 | 7.5/5.5 | 11/5.5 |
| Close Mould Speed(mm/s) | 20 | 20 | 20 | 20 | 20 |
| Open Mould Speed(mm/s) | 20 | 20 | 20 | 20 |
20 |
