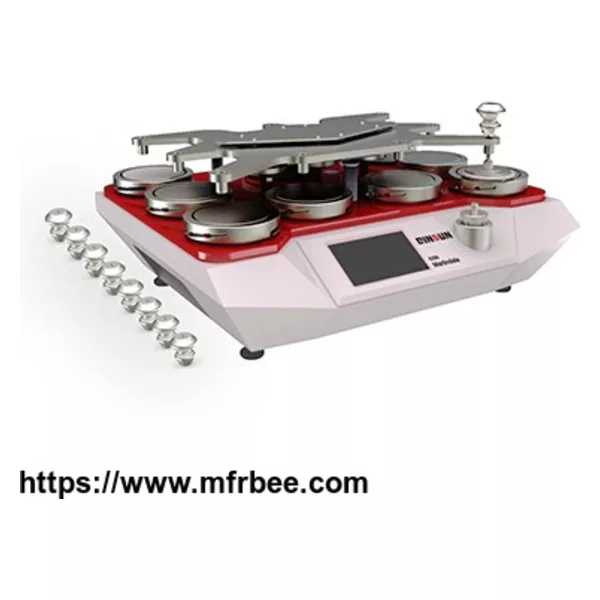

Martindale Abrasion And Pilling Tester

Product Information:

The instrument is professionally designed to determine the abrasion and pilling resistance of all kinds of textile structures.
Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.
Provided with Touch Screen Controller and unique programming device which includes preprogammable batch and totaliser counters, individual station counters, 4 selectable test speeds with liquid crystal display.

Technical Parameters:

1.Test positions: 9;

2.Count range: 0～999999;

3.Maximum stroke: horizontal 60.5±0.5mm, longitudinal 24±0.5mm;

4.Weight of pressurized materials:

a.Clamp holder assembly: 200±1g

b.Loading pieces for smaller piece: 395±2g

c.Loading pieces for larger piece: 594±2g

d.Stainless steel piece: 260±1g

5.Additional loading weight valid abradent diameter:

Type A 200g(1.96N) Pressure(9KPa) ￠28.8-0.084mm

Type B 155g(1.52N) Pressure (12KPa) ￠90-0.10mm

6.The relative speed with Clamp holder and Abrading table: 20-70r/min(Adjustable);

7.Weight of ample loading hammer: 2385±10g.

Instrument Configurations and Consumables:

1.Specimen holder assembly of 9 sets;

2.9kPa, 12kPa additional loading weight , each of 9;

3.￠38mm, ￠140mm Abradent Fabric/Backing Felt cutter of 1 set;

4.￠38mm, ￠140mm test specimen cutting mat of 1 set;

5.Pilling Test Suite of 1 set;

6.SM-50 Photographs for pilling test of 1 set;

7.EMPA Photographic Standards for Pilling Test of 1 set, and SM-25 Standard Abradent Fabric of 1.6m×5m;

8.Standard Backing Foam. Width of 1.5m, Length of 0.5m. Pack of 4;

9.Standard Backing Felt Piece of 1;

10.￠90mm Standard Backing Felt Discs(Pack of 20);
