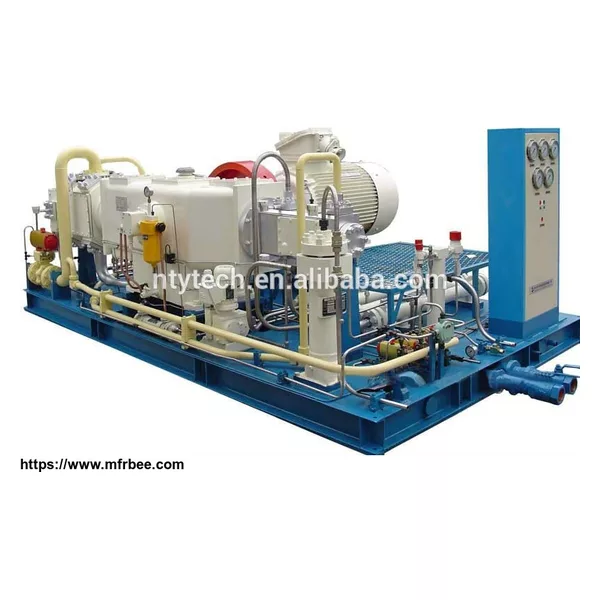

1000-1760Nm3/h Large Volume High Capacity Gas Compressor

1000-1760Nm3/h Large Volume High Capacity Gas Compressor

Model: D-4.2/(3-6)-250

Inlet pressure: 0.3-0.6MPa

Capacity: 1000-1760Nm3/h

Equipped power: 280KW

Cooling mode: water (air mixed) cooling

Weight: 23T

Dimension(L*W*H): 5000*3500*2500mm

CNG mother station natural gas compressor

Product Features:

1. Safety and reliability - All wearing parts are those made by world famous company, and service life can be reached 6000- 8000 hours.

2. Environmental protection and energy conservation - small vibration, low noise, economical operating cost.

3. Structural diversity - V type, W type and D type etc.

4. High automation - Siemens PLC, ABB soft starter ( or frequency conversion), Acousto-optic alarm with system stop when the fault happens.

Scope of application;

1. One set capacity; 100-6000Nm3/h;

2. Driving power: 45-400KW; driving mode; electrical motor, natural gas engine;

3. Inlet pressure: 0.2-8MPa;

4. Power supply: Voltage 380/220V 6/10KV;

5. Medium: Natural gas (comply with the standard of GB17820- Class II).
