manual concrete placing boom
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

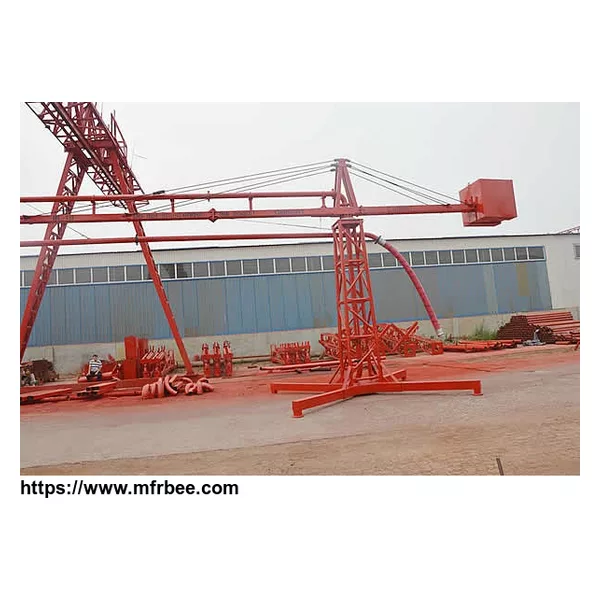

Manual Concrete Placing Boom
The Manual Concrete Placing Boom includes supporting steel pipes, pipe supports, pull bars, a beam.etc.Installed on the slewing supporting holder
- Description
- Model
- Performance
- Application
TheManual Concrete Placing Boomincludes supporting steel pipes, pipe supports, pull bars, a beam.etc.
Installed on the slewing supporting holder, the main beam frame can rotate 360°. Pipe supports on the front beam are used to fix and support delivery pipelines. The balancing frame on the rear beam is installed to achieve the balance.
The Manual Concrete Placing Boom series is structurally stable and reliable, operationally portable and flexible.
| Model | HGS-10 | HGS-12 | HGS-15 | HGS-18 |
| Reach, m | 10 | 12 | 15 | 18 |
| Area, ㎡ | 260 | 450 | 600 | 1000 |
| Height, m | 4 | 4 | 4.5 | 5 |
| Pipeline Dia., m | 133*4.5 | 133*4.5 | 133*4.5 | 133*4.5 |
| Overall Weight, kg | 900 | 1000 | 1200 | 1500 |
| Arm A Rotation, ° | 360 | 360 | 360 | 360 |
| Arm B Rotation, ° | 350 | 350 | 350 | 350 |
| Operating Weight, kg | 500 | 650 | 800 | 1000 |
