CE certification High frequency double conversion online UPS

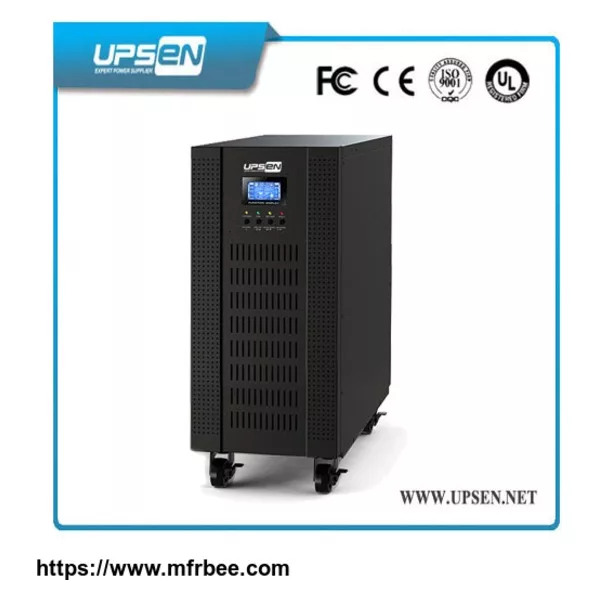

Model: High Frequency Online UPS View Star Series 10K-40Kva (3ph in/3ph out)
Quick Read
1: Three Phase UPS Power Supply with low noisy operation
2: Double conversion AC/DC, DC/AC
3: UPS with ECO Mode to save energy
4: Advanced IGBT mosfet technology
Key Features
1:True double-conversion
2:DSP technology guarantees high performance
3:Output power factor 0.8
4:Active power factor correction in all phases
5:Eco mode operation for energy saving (ECO)
6:Generator compatible
7:SNMP+USB+RS-232 multiple communications
8:3-stage extendable charging design for optimized battery performance
9:Short circuit and overload protection
10:Adjustable battery numbers
11:Maintenance bypass available
12:Optional N+X parallel redundancy
13:Over temperature and over voltage protection
VIEW STAR 3P/3P 10K/15K/20K/30K ONLINE UPS SELECTION GUIDE | |||||
MODEL | VS33 10K(L) | VS33 15K(L) | VS33 20K(L) | VS33 30K(L) | |
PHASE | 3 phase in / 3 phase out | ||||
CAPACITY | 10000 VA / 8000W | 15000VA /12000W | 20000VA /16000W | 30000VA / 24000W | |
INPUT | |||||
Nominal Voltage | 3 x 400 VAC (3Ph+N) | ||||
Voltage Range |
305-478 VAC (3-phase) @ 100% load 190-520 VAC (3-phase) @ 50% load |
||||
Frequency Range | 46~54 Hz or 56~64Hz | ||||
Power Factor | >= 0.99 @ 100% load | ||||
OUTPUT | |||||
Output Voltage | 3 x 400 VAC (3Ph+N) | ||||
AC Voltage Regulation (Batt. Mode) | ± 1% | ||||
Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz | ||||
Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | ||||
Current Crest Ratio | 3:1 (max.) | ||||
Harmonic Distortion | <= 2 % THD (Linear Load) <= 5 % THD (Non-linear Load) | ||||
Transfer Time | AC mode to Battery mode | zero | |||
Inverter to Bypass | zero | ||||
Waveform (Batt. Mode) | Pure Sine Wave | ||||
EFFICIENCY | |||||
AC Mode | 89% | 89% | 89% | 90% | |
Battery Mode | 86% | 88% | 87% | 89% | |
BATTERY | |||||
Standard Model | Battery Type | 12 V / 9 AH | |||
Numbers | 20pcs(18-20 adjustable) |
20 pcs
(18-20 adjustable)x 2 strings |
20pcs (18-20adjustable) x 3 strings | ||
Typical Recharge Time | 9 hours recover to 90% capacity | ||||
Charging Current (max.) | 1A | 2A | 2A | 4A | |
Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) | ||||
Long-run Model | Battery Type | Depending on the capacity of external batteries | |||
Numbers | |||||
Charging Current (max.) | 4A | 4A | 4A | 12A | |
Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) | ||||
INDICATORS | |||||
LCD Panel |
UPS status, Load level, Battery level, Input/Output voltage,
Discharge timer, and Fault conditions |
||||
ALARM | |||||
Battery Mode | Sounding every 4 seconds | ||||
Low Battery | Sounding every second | ||||
Overload | Sounding twice every second | ||||
Fault | Continuously sounding | ||||
PHYSICAL | |||||
Standard Model |
Dimension,
DXWXH(mm) |
815 x 250 x 826 | 815 x 250 x 826 | 815 x 250 x 826 | 815 x 300 x 1000 |
Net Weight (kgs) | 109 | 164 | 164 | 233.5 | |
Long-run Model |
Dimension,
DXWXH(mm) |
592 x 250 x 826 | 592 X 250 X 826 | 592 X 250 X 826 | 815 x 250 x 826 |
Net Weight (kgs) | 38 | 40 | 40 | 64 | |
ENVIRONMENT | |||||
Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) | ||||
Noise Level | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter | |||
MANAGEMENT | |||||
Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008,
Windows® 7/8, Linux, Unix, and MAC |
||||
Optional SNMP | Power management from SNMP manager and web browser |
* L means long-run model
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after
sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
