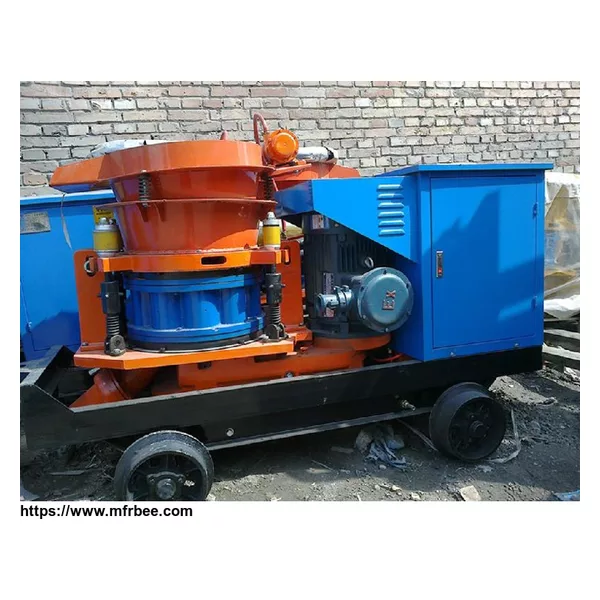

PZ-7B Mining Explosion-proof Concrete Spraying Machine

PZ-7B Mining Explosion-proof Concrete Spraying Machine

concrete spraying machine , mining shotcret machine , mortar spraying machine

Product Introduction chinacoal10

PZ-7B-type spraying machine is an equipment used for dry spray, tidal spray. It has the features of advanced technology, reasonable structure, stable performance, easy operation and maintenance, construction shotcrete machine long life, can be configured separately tire and wheel tracks two kinds of walking device.

PZ-7B mining Explosion-proof gunite machine is a mine dry shotcrete machine, the working capacity is 7m ³ / h, power is 7.5KW,the vertical conveying distance ups to 20M.

Usage

After mixed cement, sand, stone a certain proportion, PZ-7B mining explosion-proof gunite machine used compressed air as the power to spray to the surface with a high-speed after nozzle is mixed with water. It mainly used to spray the concrete mixed by sand, cement gravel. But the stones diameter should be less than 20mm , so as to ensure the injection of fluency.

PZ-7B mining explosion-proof gunite machine is mainly used in mine shaft, tunnel, caverns andother support and structural reinforcement and concrete building construction.

Significance

P: Concrete gunite machine

Z: Rotor

7: Working capacity 7m³/h

B: Mining explosion-proof motor

Technical Parameter

Theoretical working capacity: 7-8 m3h
Conveying distance: horizontal80m, vertical30 m
Materials ratio : cement gravel: 1:3～5
Water-cement ratio: ≤0.35
Aggregate size : 20mm
Conveying pipe dia: Ф63mm
Rated work pressure: 0.4MPa
Air consumption : 12 m3min
Feeding height 1.2 m
Motor model Y132M-4

Motor power 9kW
Voltage class ～380V
Outer size(L*W*H) 1943*1026*1287MM
