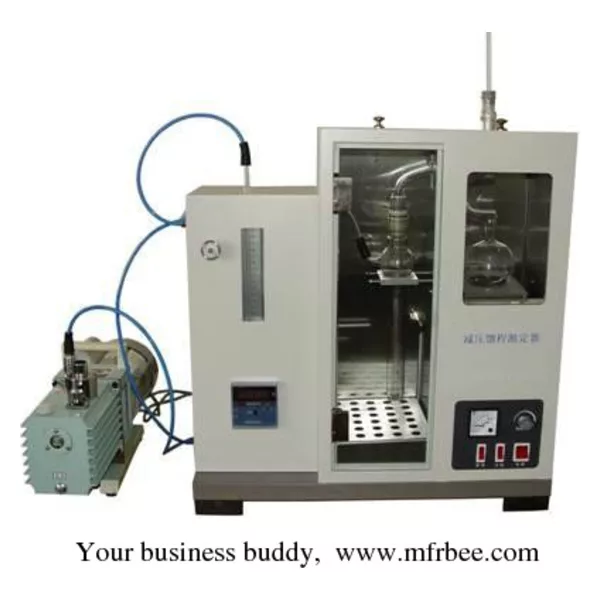

GD-0165 Vacuum Distillation Equipment

I.Brief Introduction

• The vacuum distillation equipment is designed and made as per the industry standard of People's Republic of China SH/T0165-92 Test Method for Distillation of High Boiling Point of Petroleum Products at Reduced Pressure.

II.Function

• It is suitable to determine the distillation characteristics of high boiling point petroleum products, such as wax oils, lubricating oils, etc.

III.Main technical specifications and parameters
1. Power supply: AC 220 V±10%, 50 Hz
2. Heating power:
(1) Heater for distillation flask: 1000 W
(2) Heater for receiving flask: 350 W
3. Heating power for distillation flask: 0W to 1000 W, adjustable
4. Temperature range for air bath of receiving flask: room temperature to 100 °C
5. Temperature sensor in the air bath: Pt100 platinum resistance
6. Temperature controlling mode for air bath: By a temperature controller
7. Temperature controlling accuracy: ±1 °C
8. Cubage of buffer vessel: 1000 ml
9. Max. Residual pressure of vacuum pump: ≤2 mmHg
10. Illumination light in the air bath of receiving flask:
Electricity-saving lamp
11. Working condition:
(1) Ambient temperature: 5°C to 35 °C
(2) Relative humidity: ≤85%
