Products Specification:
If you are looking for automatic air flotation cells China from best aeration flotator, pneumatic flotation cell, aeration flotation machine suppliers, please feel free to contact Jinyuan Mining
Machinery.

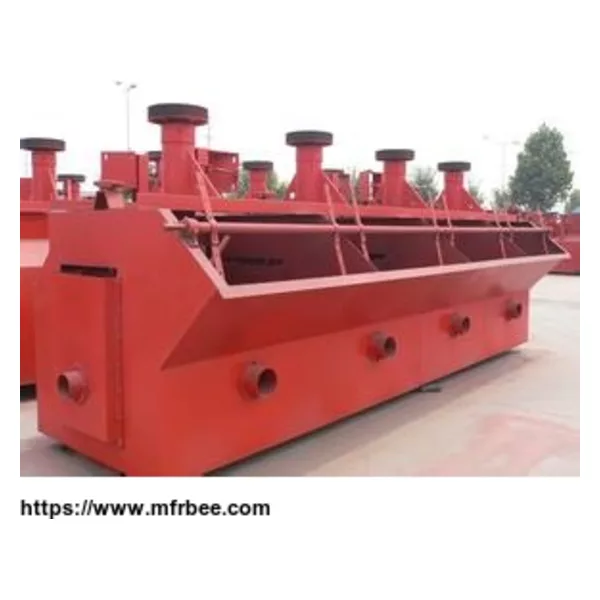

Specificationgs of XJ mechanical agitating flotation cell with arto air suction
Model
m3
Effective
Volume
Capacity
m3/min
mm
Diameter of
impeller
r/min
Revolution of
impeller
(kw) Motor Power
kg
Weight of cells
Remarks
For agitating
For paddle
XJ-1
0.13
0.05~0.16
200
600
1.5
0.55
320
It also be called as “A”
or “XJK”,with auto su-
ction ability for air and
pulp
XJ-2
0.23
0.12~0.28
250
504
3
0.55
390
XJ-3
0.35
0.18~0.4
300
483
3
0.75
430
XJ-6
0.62
0.3~0.9
350
400
3
1.1
860
XJ-11
1.1
0.6~1.6
500
330
5.5
1.1
1635
XJ-28
2.8
1.5~3.5
600
280
11
1.1
2430
XJ-58
5.8
3~7
750
240
22
1.5
3633
Specifications of XJQ mechanical agitating flotation cell with auto air suction
Model
m3
Effective
Volume
Capacity
m3/min
mm
Diameter of
impeller
r/min
Revolution of
impeller
(kw) Motor Power
kg
Weight of 2
cells
Remarks
For agitating
For paddle
XJQ-4
4
2~5
400
290,315
11
1.1
6150/2
Suck air and slurry
automatically .
XJQ-8
8
4.2~10
560
205,225
22
1.1
9170/2
XJQ-16
16
8~20
700
170,180
30
1.5
16702/2
XJQ-28
28
14~35
760
166,185
55
1.5
Specifications of flotation cell
Model
m3
Effective
Volume
mm
Inner
dimensions
L×W×H
Impeller
Air flow
sucked
m3/
m2.min
Motor
Capacity
m3/min
Weight of
Single cell kg
mm
Diameter
m/s
Periphery
Speed
Model
kw
Power
BF-0.15
0.15
550×550
×600
200
6.0
0.9
~1.05
Y90L-6
1.1
0.06
~0.16
270
BF-0.25
0.25
650×600
×700
250
6.0
0.9
~1.05
Y100L-6
1.5
0.12
~0.28
370
BF-0.37
0.37
740×740
×750
295
7.2
0.9
~1.05
Y90L-6
1.5
0.2
~0.4
470
BF-0.65
0.65
850×950
×900
300
7.35
0.9
~1.10
Y132S-6
3.0
0.3
~0.7
932
BF-1.2
1.20
1050×1150
×1100
450
7.02
0.9
~1.10
Y132M1-6
Y132M2-6
4.0
5.5
0.6
~1.2
1370
BF-2.0
2.0
1400×1450
×1120
500
7.5
0.9
~1.10
Y160M-6
7.5
1.0
~2.0
1750
BF-2.8
2.8
1650×1650
×1150
550
8.06
0.9
~1.10
Y180L-8
11
1.4
~3.0
2130
BF-4.0
4.0
1900×2000
×1200
650
8.0
0.9
~1.10
Y200L-8
15
2.0
~4.0
2585
BF-6.0
6.0
2200×2350
×1300
700
7.5
0.9
~1.10
Y225S-8
18.5
3.0
~6.0
3300
BF-8.0
8.0
2250×2850
×1400
760
7.5
0.9
~1.10
Y225M-8
22
4.0
~8.0
4130
BF-10
10
2250×2850
×1700
760
7.52
0.9
~1.10
Y225M-8
22
5.0
~10
4990
BF-16
16
2850×3800
×1700
850
8.7
0.9
~1.10
Y280S-8
Y280M-8
37
45
8.0
~16
7600
BF-20
20
2850×3800
×2000
850
8.7
0.9
~1.10
Y280S-8
Y280M-8
37
45
10
~20
8670
BF-24
24
3150×4150
×2000
920
8.7
0.9
~1.10
Y280M-8
45
12
~24
8970
Specifications of SF mechanical agitating flotation cell with auto air suction
Model
m3
Effective
Volume
Capacity
m3/min
mm
Diameter of
impeller
r/min
Revolution of
impeller
(kw) Motor Power
kg
Weight of 2
cells
Remarks
For agitating
For paddle
SF-0.37
0.37
0.2~0.4
300
352-442
1.5
0.55
936
Horizontally arranged
without foam pump
SF -0.7
0.7
0.3~1.0
350
336-384
3
1.1
1882
SF -1.2
1.2
0.6~1.6
450
312
5.5
1.1
2745
SF -2.0
2.0
0.5~2
560
312
5.5
1.1
4232
SF -2.8
2.8
1.5~3.5
550
268
11
1.5
4240
SF -4.0
4.0
2~4
650
235
15
1.5
5165
SF -8.0
8.0
4.0~8.0
760
191
30
1.5
8258
SF -10
10
5.0~10
760
191
30
1.5
8972
SF -16
16
5.0~16
850
180
45
1.5
14830
SF -20
20
5~20
760
191
30×2
1.5
19656
Specifications of JJF mechanical agitating flotation cell with auto air suction
Model
m3
Effective
Volume
Capacity
m3/min
mm
Diameter of
impeller
r/min
Revolution of
impeller
(kw) Motor power
kg
Weight of
cell
Remarks
For agitating
For paddle
JJF-1.2
1.2
0.6~1.6
500
312
5.5
1.5
1320
Auto air suction,to be arran-
ged with gradient,and may
be combined with model SF
JJF-2
2
0.5~2.0
550
230
7.5
1.5
1419
JJF-2.8
2.8
1.5~3.5
590
268
11
1.5
2050
JJF-4
4
2~4
410
305
11
1.5
2303
JJF-5
5
2~6
410
305
11
1.5
2416
JJF-8
8
4~8
540
233
22
1.5
4500
JJF-10
10
5~10
540
233
22
1.5
4820
JJF-20
20
5~20
700
180
37
1.5
8500
