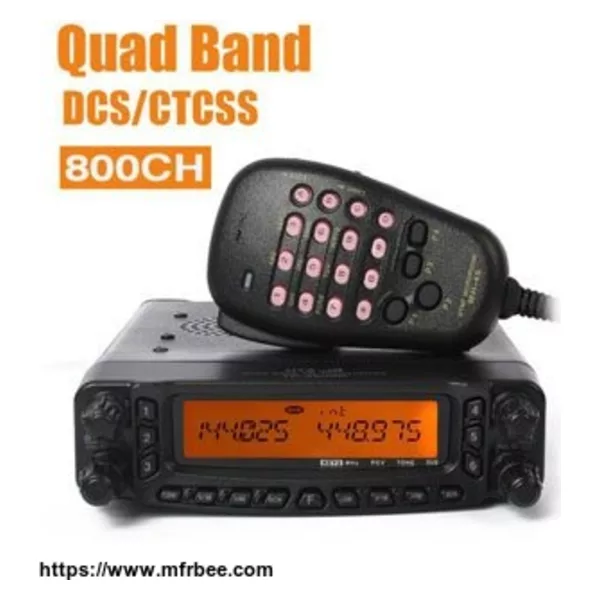

Quad Band Mobile FM Transceiver 1TC 8900R
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Key Specifications / Features
Main Features:
1. Quad Bands Operation.
2. Over 800 Memory Channels.
3. CTCSS/DCS Built-in; DTMF Function.
4. Convenient Access To WIRES and Other Internet-linking Systems.
5. Cross-band Repeat Capability.
6. Work mode: U & V,U & U,V & V,V & U.
Technical Specifications:
General:
1. Frequency Range RX: 26.000-33.000MHz, 47.000-54.000MHz, 108.800-135.000MHz, 136-180MHz, 320-512MHz, 700-950MHz (wireless not include,108.800-136.995MHz FM).
2. TX: 26.000-33.000MHz, 47.000-54.000MHz, 136.000-174.000MHz, 400.000-470.000MHz.
3. RF Power: 50/20/10/5W (29/50/144MHz), 35/20/10/5W (430MHz).
4. Operating Modes: F3, F2, F1.
5. Frequency Step: 5/10/12.5/15/20/25/50kHz.
6. Power Supply: 13.8V (±15%).
7. Frequency Stability: ±2.5PPM.
8. Operating Temperature Range: -20°C to 60°C.
9. Antenna Impedance: 50Ω.
10. Dimensions (W×H×D): 140×41.5×168mm.
11. Weight: 1070g.
Transmitter:
1. Power Output: 50/20/10/5W (29/50/144Mhz), 35/20/10/5W (430Mhz).
2. Maximum modulation: ±5khz (wide band).
3. Frequency Deviation: ±2.5khz (narrow band),
4. Out-of-band radiation: ≤ -69dB (29Mhz≤-50dB).
5. Modulation Distortion: <3%.
6. Microphone Impedance: 2KΩ.
Receiver:
1. Sensitivity: ≤0.2μV (12dB SINAD).
2. Circuit type: Second type difference frequency outside.
3. IF-FRE: 45.05Mhz/450Khz (left), 47.25Mhz/450Khz (right).
4. Selectivity: 12Khz/30Khz.
5. The biggest audio output: 2W (8Ω).
1. Quad Bands Operation.
2. Over 800 Memory Channels.
3. CTCSS/DCS Built-in; DTMF Function.
4. Convenient Access To WIRES and Other Internet-linking Systems.
5. Cross-band Repeat Capability.
6. Work mode: U & V,U & U,V & V,V & U.
Technical Specifications:
General:
1. Frequency Range RX: 26.000-33.000MHz, 47.000-54.000MHz, 108.800-135.000MHz, 136-180MHz, 320-512MHz, 700-950MHz (wireless not include,108.800-136.995MHz FM).
2. TX: 26.000-33.000MHz, 47.000-54.000MHz, 136.000-174.000MHz, 400.000-470.000MHz.
3. RF Power: 50/20/10/5W (29/50/144MHz), 35/20/10/5W (430MHz).
4. Operating Modes: F3, F2, F1.
5. Frequency Step: 5/10/12.5/15/20/25/50kHz.
6. Power Supply: 13.8V (±15%).
7. Frequency Stability: ±2.5PPM.
8. Operating Temperature Range: -20°C to 60°C.
9. Antenna Impedance: 50Ω.
10. Dimensions (W×H×D): 140×41.5×168mm.
11. Weight: 1070g.
Transmitter:
1. Power Output: 50/20/10/5W (29/50/144Mhz), 35/20/10/5W (430Mhz).
2. Maximum modulation: ±5khz (wide band).
3. Frequency Deviation: ±2.5khz (narrow band),
4. Out-of-band radiation: ≤ -69dB (29Mhz≤-50dB).
5. Modulation Distortion: <3%.
6. Microphone Impedance: 2KΩ.
Receiver:
1. Sensitivity: ≤0.2μV (12dB SINAD).
2. Circuit type: Second type difference frequency outside.
3. IF-FRE: 45.05Mhz/450Khz (left), 47.25Mhz/450Khz (right).
4. Selectivity: 12Khz/30Khz.
5. The biggest audio output: 2W (8Ω).
