XLDL Intelligent lighting control system usually is used in the street lighting.
It can control the light on-off/ collect the real-time data of the line/ detect the system fault and monitor center communication.
1.Basic data
Model | Total Capacity | Rated Voltage | Rated Current |
XLDL-8001 | 66KAV | 380V | 100A |
Output Branch | Ambient temperature | Relative humidity | Altitude |
2 / 4 / 8branches | -20 ~ + 50 ℃ | ≤95% | Altitude: ≤5000m. |
Power | Frequency | Shell material | Dimensions |
AC220V | 50Hz | Stainless steel | 120cm * 70cm * 40cm |

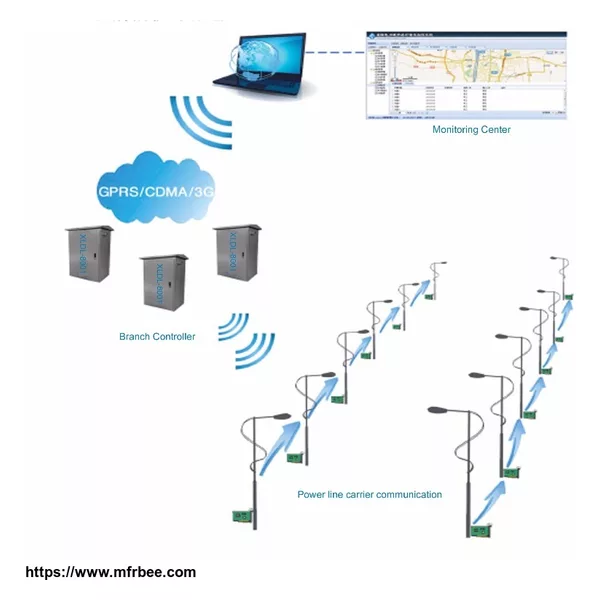

2.The system is composed of
1. the main control room (control center);
2. Internet technology and GPRS wireless networks;
3. Branch intelligent controller, centralized controller;
4. Power line carrier systems;
5. Intelligent electronic ballasts.
3.Main functions
1. Remote intelligent control of single lamps;
2. Digital and intelligent management of the system equipment;
3. Management by region, group or line;
4. Intelligent branch controllers can operate autonomously in case of communication interruption;
5. Built-in full night and half night lighting scenarios, and customized scenarios are available;
6. Fault alarm and burglar alarm.
