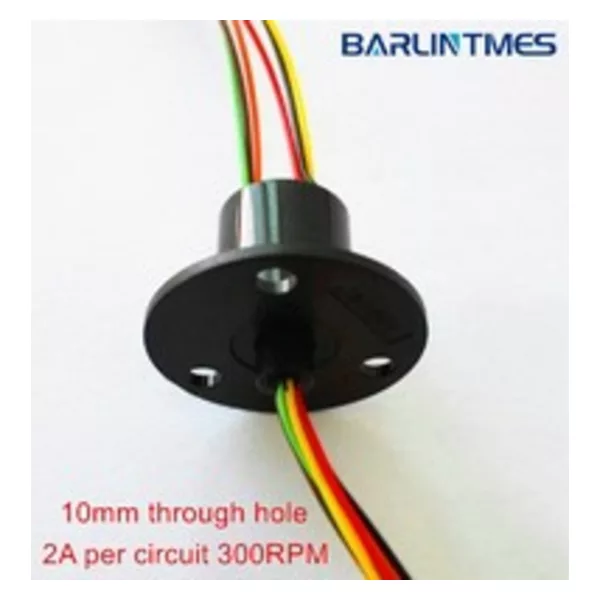

capsule with through hole slip ring-Barlin Times
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Features:
Gold to gold contact materials guarantee long life time
Low torque, low electrical noise and smooth rotation
Small compact construction
4. Compatible with data bus protocols
5. Continuous transmission of signal and/or data under 360 degree unrestrained rotation
Option:
Circuits
Current & Voltage
Work speed
Housing materials and color
Protection degree
Lead wire exit direction
Connector type
Signal and power transmission single or together
Application:
CCTV
Rotary table, exhibition/display equipment
Robotics
Medical equipment
Wind turbine generator
Industry process equipment
THR030-06T
| Specification | |
| Circuits | 1-6 circuits |
| Work Speed | 0-300RPM |
| Work Temperature | -20℃-+60℃ |
| Work Humidity | 60%RH or higher |
| Voltage Rating | 240VAC/DC |
| Current Rating | 2A per circuit |
| Through Hole Size | 2-10mm |
| Dielectric Strength | 500VAC@50Hz between each circuit |
| Electrical Noise | 1mΩ Min |
| Contact Materials | Gold to gold |
| Lead Wire Size | AWG26 Teflon® UL |
| Lead Wire Length | Standard 250mm |
| Housing Materials | Engineering Plastic |
| Torque | ≤0.88 gm ( for reference） |
| Protection | IP54 or higher |
