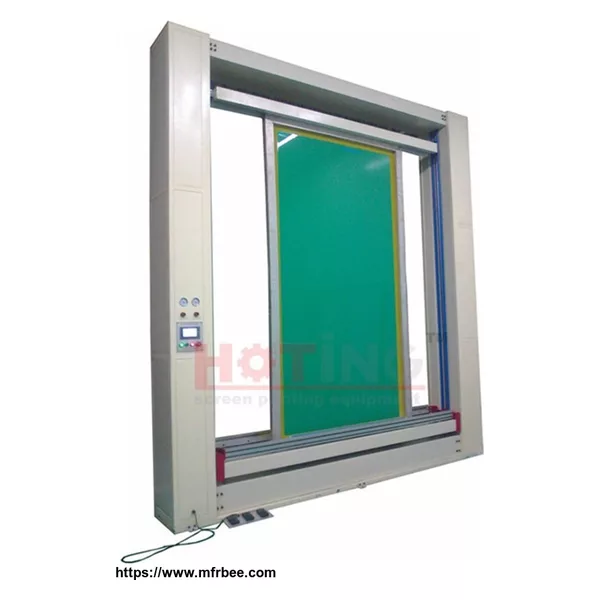

Large size automatic emulsion coating machine

FOB Price
USD $12,500.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
1pcs in wooden box
Delivery
15 Days

Application Scope:

The series is suitable for screen printing screen high-precision photographic emulsion coating.

Features:

(1) PLC programmable controller and HMI composition as the operating control system.

(2) Full automatic operation via touch-screen settings, ordinary plate-maker can be easy to produce high-quality precision screen.

(3) Fixing clamps / Unlock clamps set by a foot switch which controls the air pressure, easy to load and unload screen.

(4) Coating speed, coating time and a single, double-sided coating can be freely set.

(5) With pressure regulating function, the coating thickness can be controlled via a set number of application times and applying pressure.

(6) While reaching stop position would automatically slow down to 20mm near the frame, no need to fix screen extra edges.

(7) Use of rail steel with special low vibration, ripple-free coating process.

(8) Operating system with multi languages, multiple coating patterns, and detailed parameter settings.

(9) Special corrosion-resistant treatment aluminum scoop coater, with no clearance with the coating structure, maintain stable emulsion coating.


Parameter:


Model CAD-1830 CAD-2540
Max frame size (OD) 1800 X 3000mm 2500 X 4000mm
Min frame size (OD) 600 X 600mm 600 X 600mm
Coating speed 50 ~ 150mm/sec
Frame fixing Vacuum pneumatic clamps
Air pressure 6kg/cm2
Weight Approx. 550kg Approx. 650kg
Power 220V X 1ph X 2.2KW 220V X 1ph X 2.2KW
Dimension (W X D X H) 2221 X 1164 X 3862mm 2821 X 1164 X 4862mm
★ Special specification can be made for customized model.
