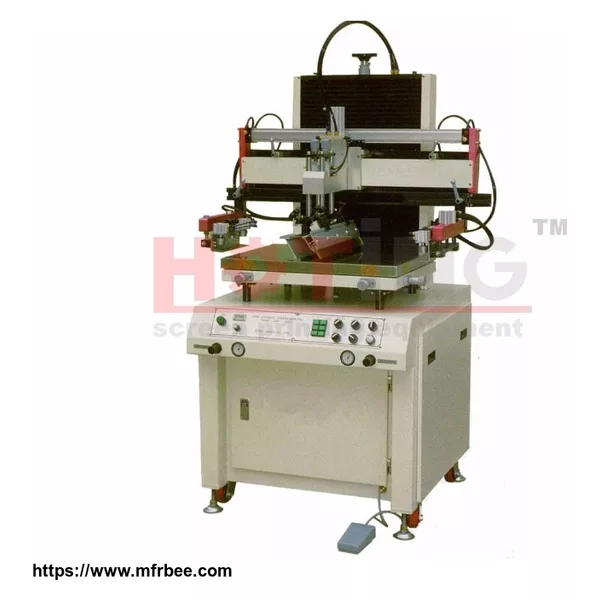

Application:
This series is suitable for circuit board, mobile phone panel, membrane switch, keyboard, lcd display panel etc precision surface printing.
Parameters:
1. The machine adopt IC control and induction photoelectric switch control, stable and reliable performance,
imported main electrical components to make sure high precision and durable, this machine is equipped with special protection circuit for
safety performance.
2. Taiwan precision HIWIN linear guide, lead to accurate and smooth motion
3. Japan, Germany etc pneumatic components, high performance and
reliable quality
4. Printing adopts imported frequency control of speed brake motor, thus ensuring the stability of the printing
5. Scraper and flood bar running by movable portable induction photoelectric switch, which make more convenient adjustment and improve the work efficiency
6. Printing platform adopts imported aluminum alloy processing synthetic hardness, high flatness, surface polishing treatment, no scraping to printing material
7. Printing platform choose Taiwan RCELEC brand vacuum suction fan, high adsorption and can
be up to 13 kpa. Will not cause shifting in printing process
8. Scraper and printing table distance, suitable for printing of 0-150mm thick material
9. Pneumatic scraper and flood bar, auto adjust pressure between printing and flood bar to ensure
accuracy of precision printing
10. Printing head up and down the whole mechanical or pneumatic rotation, guarantee the accuracy and steady of the localization
in the process of printing
11. Printing table with X, Y direction micro adjustment, ensure the printing accuracy.
Optional:
Screen touch panel
Specification:
Model | PTA-5040 | PTA-5040-A | |||
Max printing size | 500 X 400mm | 500 X 400mm | |||
Printing table size | 650 X 500mm | 650 X 500mm | |||
Printing speed | 900 cycle/h | 600 cycle/h | |||
Max frame size | 800 X 900mm | 800 X 900mm | |||
Printing pressure | 0 ~ 45kgf | 0 ~ 45kgf | |||
Scraper running | Cylinder | Cylinder | |||
Scraper angle | 60° ~ 90° | 60° ~ 90° | |||
Printing table running | Fixed | Cylinder | |||
Printing precision | 0 | ÷10μm | |||
Frame fixing | Cylinder Clamp | Cylinder Clamp | |||
Printing material fixed | Ring Blower | Ring Blower | |||
Air pressure | 6kgf/cm2 | 6kgf/cm2 | |||
Weight | Approx. 420kg | Approx. 500kg | |||
Power | 220V X 1ph X 500W | 220V X 1ph X 500W | |||
Dimension (W X D X H) | 1050 X 1000 X 1790mm | 1050 X 1400 X 1790mm | |||
★ Special specification can be made for customized size. | |||||
