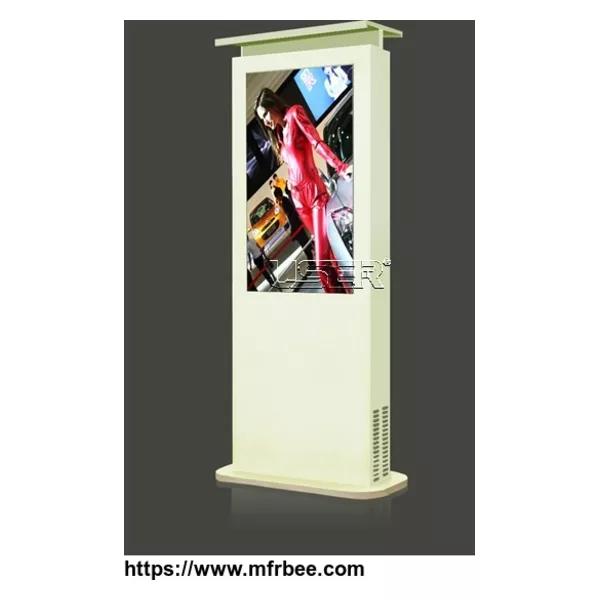

Model No. | US-AD550LHK |
Panel size | 55″TFT-LED |
Display area(mm)/mode | 1209.6mm(H) x 680.4mm(V) 16:9 |
Maximum resolution | 1920*1080 |
Display color | 1.073G(10bits/color) |
Pixel Pitch(mm) | 0.21mm(H) x 0.63mm(V) (mm) |
Brightness (nits) | 1500cd/㎡ |
Contrast | 4000:1 |
Visual angle | 178°/178° |
Response time | 6.5ms |
Life(hrs) | >60,000(hrs) |
Input and output | |
USB | 1 |
SD | 1 |
CF | 1 (Built-in 4G CF card) |
Speaker | 2×5W(9Ω) |
Video | |
Color system | PAL/NTSC/SECAM |
Remote controller | Special |
OSD display( screen menu display) | |
Menu language | Chinese/English |
Power | |
Power supply | AC100~240V 50 /60 HZ |
Maximum power consumption | ≤ 800W |
Standby power consumption | <5W |
Temperature | |
Working temperature | 0℃~50℃ |
Storage temperature | -20℃~60℃ |
Working humidity | 85% |
Storage humidity | 85% |
Waterproof grade | Full outdoor IP65 |
Temperature control | Air cooling(fans) |
Appearance | |
Panel color/appearance | White, black, customized |
Panel material | Metal case SPCC |
Installation | flood-standing |
