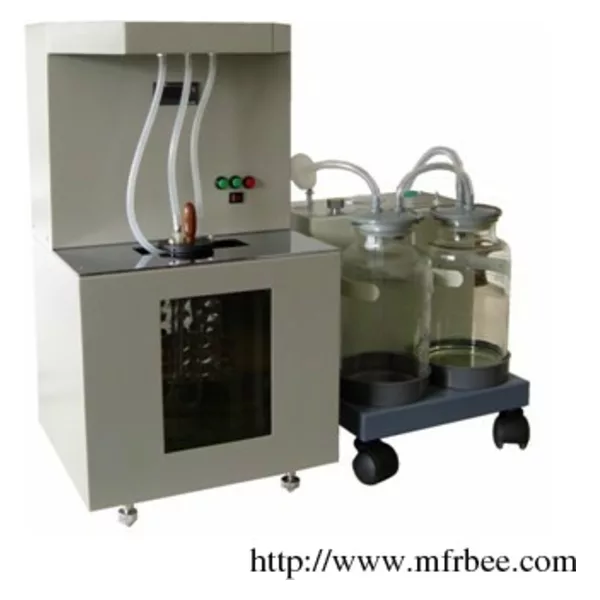

GD-265-3 Glass Capillary Viscometer Washer

Brief Introduction

• The instrument is designed and made specially for washing the capillary viscometers, which are used for testing petroleum products.
• It can be used to wash glass capillary viscometer of various types, such as Pinkevitch Viscometer, Ubbelohde Viscometer, Cannon-Fenske Viscometer, Counter-current Viscometer with three inlet.
• Especially for the capillary viscometer, which are used for testing heavy oil with high viscosity.
• It is high-efficient and time saving than traditional manual cleaning.
• It adopts micro-controller control technology, program control, automatic washing.
• It needs less solvent oil and it is convenient, efficient.
• It can be widely used in the enterprises producing and using petroleum products, colleges and universities, and scientific research institutes and so on, where capillary viscometer are used.

Main technical specifications and parameters
1. Power supply: AC 220V±10%, 50 Hz;
2. Total power consumption: 700 W;
3. Water bath temperature controlling range: room temperature~80 °C;
4. Ambient temperature: 20°C~35°C
5. Relative humidity: ≤85%
6. Dimension of washer: 320mm×300mm×500mm ( excluding the aspirator )
7. Weight of washer: 10Kg (excluding the aspirator)
