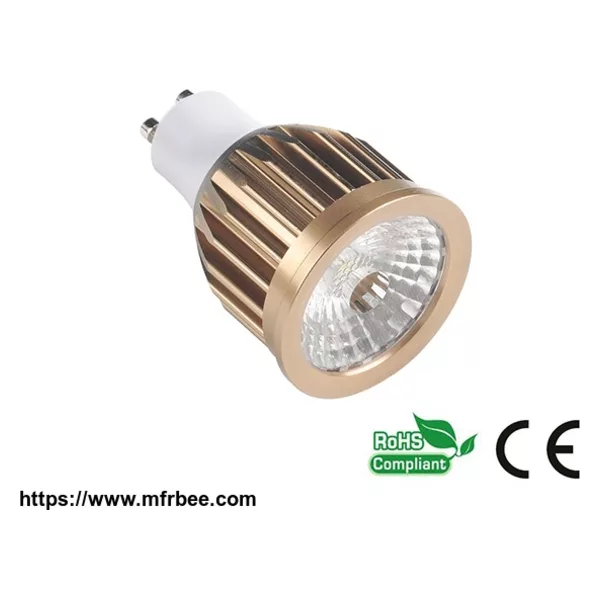

LED spotlight

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Model:SC-LS-SD05-SP32

Power:5W

Dimension(mm):Ø50

Input voltage:100~240V

frequency:50/60Hz

LED source:COB

Output current(Isolated):300±10mA

LumensLM):850±100

Product Description

1) Product Feature

A) Design it with width input voltage
B) Design it with CRI＞80 Epistar COB lightsource
C) Design it with optical lens
D) Design it 6063 Aluminium with good heatsink
E) 50,000H long life-span
F) Constant current of LED drive, no flash

2) Applications

Widely used in Hotel,Bar,Passage Way,Shopping Mall,Toilet,Restaurant,Museum,Exhibition Centre,storeroom, indoor home lighting etc project.

3) Product parameter

Model number: SC-LS-SD05-SP32

Dimension: Ø50

Hole size: Φ73

Input voltage: 100~240V

frequency: 50/60Hz

Power consumption: 5W

Power factor: ≥0.9

CRI: ≥80

LED source: COB

Output voltage(Isolated): DC25-35V

Output current(Isolated): 300±10mA

Lumens(LM): 850±100

Luminous Efficiency(LM/W): Appr.80lm/w

Beam angle: 60°

Color temperature: CW, NW, WW

Life-span: 50000H

Working temperature: -20℃~+40℃

Working humidity: (20-90)%RH

Storage temperature: -40℃~+85℃

Storage humidity: (10-90)%RH

Certification: CE RoHS

Dimmable way: Non/Triac

Website:http://www.scivas-led.com/LED_Lights/LED_Spotlight/SC-LS-SD05-SP32.html

Country: China (Mainland)
