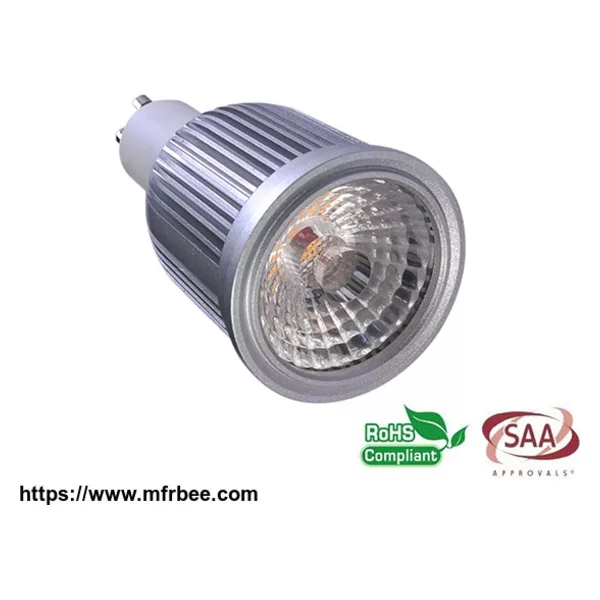

LED spotlight
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Model:SC-LS-SD09-GU10-SP03
B) Design it with CRI＞80 Epistar COB lightsource
C) Design it with optical lens
D) Design it 6063 Aluminium with good heatsink
E) 50,000H long life-span
F) Constant current of LED drive, no flash
Power:9W
Dimension(mm):Ø50
Input voltage:100~240V
frequency:50/60Hz
LED source:COB
Output current(Isolated):300±10mA
LumensLM):850±100
Product Description
1) Product Feature
A) Design it with width input voltageB) Design it with CRI＞80 Epistar COB lightsource
C) Design it with optical lens
D) Design it 6063 Aluminium with good heatsink
E) 50,000H long life-span
F) Constant current of LED drive, no flash
2) Applications
Widely used in Hotel,Bar,Passage Way,Shopping Mall,Toilet,Restaurant,Museum,Exhibition Centre,storeroom, indoor home lighting etc project.
3) Product parameter
| Model number: | SC-LS-SD09-GU10-SP03 | SC-LS-SD09-MR16-SP03 |
| Dimension: | Ø50 | Ø50 |
| Hole size: | Φ87 | Φ83 |
| Input voltage: | 100~240V | 100~240V |
| frequency: | 50/60Hz | 50/60Hz |
| Power consumption: | 9W | 9W |
| Power factor: | ≥0.9 | ≥0.9 |
| CRI: | ≥80 | ≥80 |
| LED source: | COB | COB |
| Output voltage(Isolated): | DC25-35V | DC25-35V |
| Output current(Isolated): | 300±10mA | 300±10mA |
| Lumens(LM): | 660±50 | 660±50 |
| Luminous Efficiency(LM/W): | Appr.80lm/w | Appr.80lm/w |
| Beam angle: | 60° | 90° |
| Color temperature: | CW, NW, WW | CW, NW, WW |
| Life-span: | 50000H | 50000H |
| Working temperature: | -20℃~+40℃ | -20℃~+40℃ |
| Working humidity: | (20-90)%RH | (20-90)%RH |
| Storage temperature: | -40℃~+85℃ | -40℃~+85℃ |
| Storage humidity: | (10-90)%RH | (10-90)%RH |
| Certification: | CE RoHS | CE RoHS |
| Dimmable way: | Non/Triac | Non/Triac |
