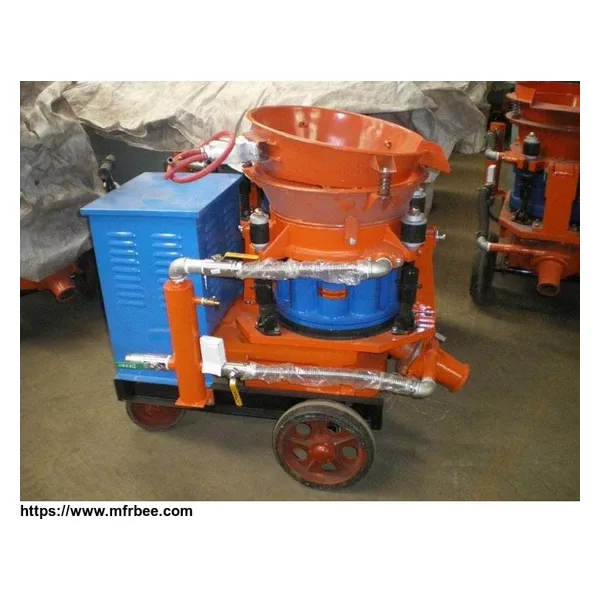

PC5T Wet Spraying Machine

PC5T Wet Spraying Machine

Wet Spraying Machine , Wet Shotcrete Machine , shotcrete machine

Product Introduction chinacoal10

PC5T wet spraying machine is mainly used in iron (public) road tunnel project. Equipment is easy to operate, low dust, low rebound, protect the environment and improve the quality of shotcrete, a special vibration hopper can successfully enter the concrete batching system.

Feature

1. Through type rotary, non-sticky, unobstructed discharge, high efficiency and time-saving.

2. Four-point clamping device makes it easy to adjust the press between sealing plate and rotor disk so as to reduce air and dust leak and prolong consumption parts life.,

3. Using low-tension, high-speed vortex pneumatic transportation, so the spraying flow is even, continuous and steady. It's good to improve the shotcrete quality.

4. The new nozzle, discharge elbow device, improving spray deposition effect, less resilient, high quality shotcrete.

Technical Parameter

Model PC5T

Output 5m3/h

Rated work pressure 0.4MPa

Conveying distance(horizontal/vertical) 80/30m

Air consumption 8m^3/min

Max aggregate dia ≤20mm

Mix water-cement ratio 0.2～0.35%

Dust concentration ≤20mg/m^3

Chassis rail wheels distance 600/762/900mm

Outer size(L*W*H) 1530*818*1188(mm)

Conveying pipe dia φ51mm

Rotor speed 11r/min

Motor power 5.5kW

Voltage class ～380/660V
