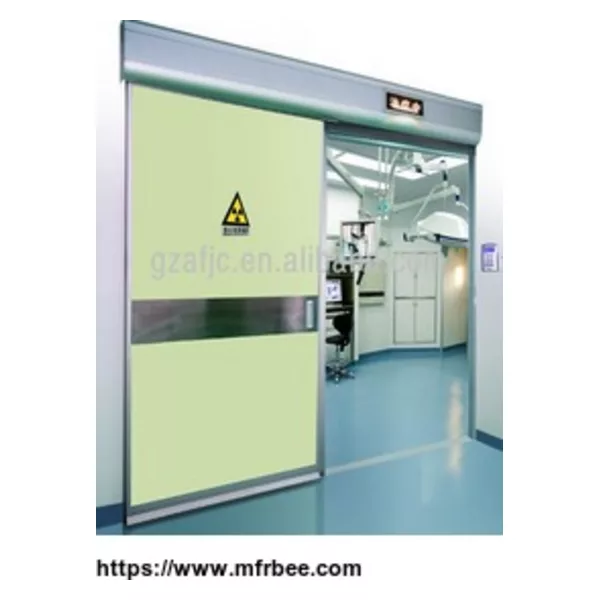

Radiation Protection Door

lead lined door

Product Description

1. Stainless Steel frame, one-off forming at high temperature and high pressure;

2. Sliding door, with electric control sliding door opener system;

3. Surface-mount full stainless steel sheets or ivory anti-static plate spliced with

wire-drawing stainless steel sheets, with stainless steel bindings;

4. Electric actuator (optional):

(1) Application of a plurality of intelligent and protection units capable of automatic

setting of control process;

(2) Use of a safety beam (photocell) to ensure safe access of persons;

(3) Professional mechanical drive design featuring long service life, large torque

and extremely low noise.

(4) Open with hand/feet sensor switch or keypad.

5. The thickness of the PB is 2mm to 4mm.

The radiation protection sliding door is one of high-tech ionizing radiation protection products independently developed and manufactured by Guangzhou OUAYNG Radiation Protection Engineering Co., Ltd. The product features excellent radiation protection performance, reasonable door structure, smooth door opening/closing, novel and elegant appearance, as well as perfect match between visual effect and high-quality medical equipment. Therefore, it is really an ideal quality product applicable to radiology rooms for such equipment as linear accelerators, gamma knifes, post-loading equipment, Cobalt-60, PET-CT, CT, DR, DSA, and X-ray machines in modern high-grade hospitals.

Hospital X-ray Protection Door Technical Specifications

Lead sheet thickness	1mm, 2mm, 3mm, 4mm, 6mm
Lead glass thickness	8mm,12mm,15mm,18mm, 20mm
Door skin material	color painted steel, stainless steel (SUS), aluminum, PVC, fireproof board, etc.
Door frame material	stainless steel
Knock blade material	stainless steel
Seal material	silica gel, rubber
Door lock & door hinge material	stainless steel
Door size	swing door	single door width: 700mm-1000mm, mother & son door width: 1200mm-1400mm, double door width: 1400mm-1800mm, door height: 1900mm-3000mm
sliding door	single door width: 1000mm-2200mm, double door width: 1500mm-3000mm, door height: 1900mm-3100mm
Door skin color	original SUS color, original aluminum color, light blue, white, grey, beige, etc.
Automatic door system	opening door by hand sensor switch, feet sensor switch or press switch
Door advantage	airtight, X-ray protection
Optional accessories	1, LED light screen 2, visual window 3, bottom sinking down seals

Also have radiation protection glass window

Material: radiation protection glass, ZF3 standard medical lead glass

Lead glass thickness: 8mm, 10mm, 12mm, 15mm, 18mm, 20mm

Visual window frame material: 1.2mm stainless steel/color coated steel

+ 2mm-4mm lead sheet lined

lead window
